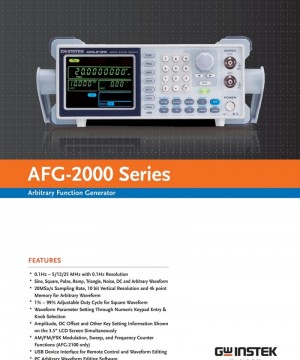

GW Instek AFG-2105 5MHz Arbitrary Waveform Function Generator

GW Instek AFG-2105 5MHz Arbitrary Waveform Function Generator

============================================================

Features

·         0.1Hz to 5/12/25 MHz with in 0.1Hz Resolution

·         Sine, Square, Triangular, Noise and Arbitrary Waveform

·         20MSa/s Sampling Rate, 10 bit Vertical Resolution and 4k Point Memory for Arbitrary Waveform

·         1% ~ 99% adjustable duty cycle for Square Waveform

·         Waveform Parameter Setting Through Numeric Keypad Entry & Knob Selection

·         AM/FM/FSK Modulation, Sweep, and Frequency Counter Functions

·         USB Device Interface for Remote Control and Waveform Editing

·         PC Arbitrary Waveform Editing Software

============================================================

Specifications

WAVEFORMS : Sine, Square, Ramp, Noise, Arbitrary Waveform

ARBITRARY FUNCTIONS

*Sample Rate : 20MSa/s

*Repetition Rate : 10MHz

FREQUENCY CHARACTERISTICS

*Range : 0.1Hz – 5MHz

*Resolution : 1µHz

OUTPUT CHARACTERISTIC

*Amplitude : ≤20MHz : 1mVpp - 10Vpp(50 ); 2mVpp - 20Vpp(open-circuit); ≤25MHz : 1mVpp - 5Vpp(50 ); 2mVpp - 10Vpp(open-circuit)

*Waveform : 50Ω typical (fixed); >300kΩ (output disable)

SINE WAVE CHARACTERISTICS

*Harmonic Distortion : -55 dBc DC - 200kHz, Ampl > 0.1Vpp; –50 dBc 200kHz - 1MHz, Ampl > 0.1Vpp. -35 dBc 1MHz - 5MHz, Ampl > 0.1Vpp; –30 dBc 5MHz - 25MHz, Ampl > 0.1Vpp

FREQUENCY COUNTER :

*Range : 5Hz – 150MHz

*Accuracy : Time base ± 1 count

STORE/RECALL : 10 Groups of Setting Memories

DISPLAY : LCD

INTERFACE : USB (Device)

POWER SOURCE : AC 100 – 240V, 50 – 60Hz

DIMENSIONS & WEIGHT : 266 (W) x 107 (H) x 293 (D) mm, Approx. 2.5kg

ACCESSORIES : User manual CD x 1, Quick Start Guide x 1, Power Cord x 1, GTL-101 test lead x 2 (AFG-2100 series)

===========================================================
