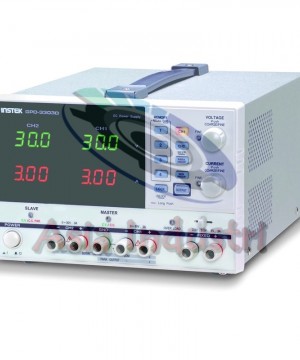

GW Instek GPD-3303D 3-Channels, 195W Programmable Linear DC Power Supply

GW Instek GPD-3303D 3-Channels, 195W Programmable Linear DC Power Supply

============================================================

Features

·         2/3/4 Independent Isolated Output

·         4 LED Display Sets: 3 digits after decimal point

·         Minimum Resolution :

·         100mV/10mA(GPD-3303D)

·         Digital panel control(rotary encoder Switch, rubber key with indicator)

·         User-friendly operation, coarse/fine volume control

·         4 Sets Save/Recall

·         Key-Lock

·         Output on/off

·         Tracking Series and Parallel mode

·         Smart cooling fan achieving low noise

·         USB Standard Interface

·         PC Software & USB Driver

·         Labview driver

============================================================

Specifications

OUTPUT

-Channel : CH3

-Voltage : 0 – 30V (CH1 & CH2); 2.5/3.3/5.0V (CH3)

-Current : 0 – 3A (CH1 & CH2); 3A (CH3)

ConSTANT VOLTAGE OPERATION

-Line Regulation : ≤0.01% + 3mV

-Load Regulation : ≤0.01% + 3mV (rating current ≤3A); ≤0.02% + 5mV (rating current >3A)

-Ripple & Noise : ≤1mVrms (5Hz – 1MHz)

-Recovery Time : ≤100µS (50% Load change, Minimum load 0.5A)

ConSTANT CURRENT REGULATION

-Line Regulation : ≤0.2% + 3mA

-Load Regulation : ≤0.2% + 3mA

-Ripple & Noise : ≤2mArms

METER

-Display : Voltage : 3 digits 0.4" LED Display; Current : 3 digits 0.4" LED Display

-Resolution : Voltage : 100mV; Current : 10mA

CH3 SPECIFICATIONS

-Output Voltage : (2.5V/3.3V/5V) ±8%

-Output Current : 3A

KEY LOCK : Yes

MEMORY SAVE/RECALL : 4 sets

POWER SOURCE : AC 100V/120V/220V/230V ±10%, 50/60Hz; 490V max

DIMENSIONS & WEIGHT : 210(W) x 130(H) x 265(D) mm; Approx. 7kg

ACCESSORIES : User manual x 1, Power cord x 1, Test Lead GTL-104A x 2, GTL-105A x 1

===========================================================
