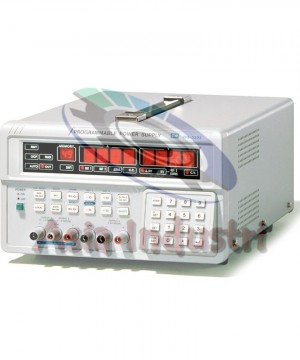

GW Instek PPE-3323 207W Triple Output Programmable DC Power Supply

GW Instek PPE-3323 207W Triple Output Programmable DC Power Supply

============================================================

Features

·         Easy Operation with UP/DOWN Key

·         High Resolution: 10mV, 1mA

·         50 Sets Memory

·         Self Test and Software Calibration

·         Auto Step Running With Timer Setting

·         Triple Output

·         Auto Tracking

·         RS-232 Communication

·         High Stability, Low Drift

·         4 Digit Display

·         IEC Safety Regulation

============================================================

Specifications

OUTPUT

-Voltage : 0 – +32V, 0 – -32V, 3.3V/5V FIXED

-Current : 0 – +3A, 0 – -3A, 3A FIXED

-OVP : 0 – +33V, 0 – -33V

LOAD REGULATION

-Voltage : ≤6mV

-Current : ≤3mA

LINE REGULATION

-Voltage : ≤3mV

-Current : ≤3mA

RESOLUTION

-Voltage : 10mV (20mV rating voltage > 36V)

-Current : 1mA (2mA rating current >3.5A)

-OVP : 10mV (20mV rating voltage > 36V)

PROGRAM ACCURACY

-Voltage : ≤0.05% + 25mV (+50mV rating voltage > 36V)

-Current : ≤0.2% + 10mA

-OVP : ≤2% + 0.6V

RIPPLE & NOISE

-Voltage : Ripple 1mVrms/3mVp-p; Noise 2mVrms / 30mVp-p

-Current : ≤3mA rms (5mA rms rating current > 3.5A)

RESPonSE TIME

-VOLTAGE UP 10% - 90% : ≤100mS

-VOLTAGE DOWN 90% - 10% : ≤100mS (≥rating load)

MEMORY : 50 sets

INTERFACE : RS-323

POWER SOURCE : AC 100V/120V/ 220V/240V ±10%, 50/60Hz

DIMENSIONS & WEIGHT : 255(W) x 145(H) x 346(D) mm; Approx. 10kg

ACCESSORIES : User manual x 1, Power cord x 1, Test Lead GTL-105 x 3

===========================================================
