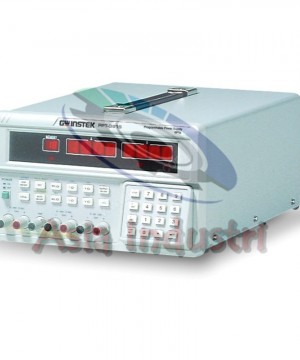

GW Instek PPT-3615 126W Triple Output Programmable D.C. Power Supply

GW Instek PPT-3615 126W Triple Output Programmable D.C. Power Supply

============================================================

Features

·         Easy operation with UP/DOWN key

·         High Resolution: 10mV, 1mA

·         Over voltage protection, over current protection by hardware

·         50 Sets memory

·         Self test and software calibration

·         Meets UL CSA IEC Safety Regulation

·         Auto Step Running With Timer Setting

·         FRONT/REAR Output and Sense Switch Selectable

·         Triple Output

·         Auto Series and Parallel Operation

·         Auto Tracking

·         IEEE-488.2 and SCPI Compatible Command set

·         Labview Driver Software Available

·         High Stability, Low Drift

·         4 Digit Display

============================================================

Specifications

OUTPUT

-Voltage : 0 – 36V x 2, 0 – 6V x 1

-Current : 0 – 1.5A x 2, 0 – 3A x 1

-OVP : 0 – 38.5V x 2, 0 – 7V x 1

LOAD REGULATION

-Voltage : ≤3mV rear output (≤6mV front output)

-Current : ≤ 3mA (≤6mA rating current > 3.5A)

LINE REGULATION

-Voltage : ≤3mV

-Current : ≤3mA

RESOLUTION

-Voltage : 10mV (20mV rating voltage > 36V)

-Current : 1mA (2mA rating current >3.5A)

-OVP : 10mV (20mV rating voltage > 36V)

PROGRAM ACCURACY

-Voltage : ≤0.05% + 25mV (+50mV rating voltage > 36V)

-Current : ≤0.2% + 10mA

-OVP : ≤2% + 0.6V

RIPPLE & NOISE

-Voltage : Ripple 1mVrms/3mVp-p; Noise 2mVrms / 30mVp-p

-Current : ≤3mA rms (5mA rms rating current > 3.5A)

RESPonSE TIME

-VOLTAGE UP 10% - 90% : ≤100mS

-VOLTAGE DOWN 90% - 10% : ≤100mS (≥rating load)

MEMORY : 50 sets

INTERFACE : GPIB

POWER SOURCE : AC 100V/120V/ 220V/240V ±10%, 50/60Hz

DIMENSIONS & WEIGHT : 255(W) x 145(H) x 346(D) mm; Approx. 10kg

ACCESSORIES : User manual x 1, Power cord x 1, Test Lead GTL-104 x 3

===========================================================
