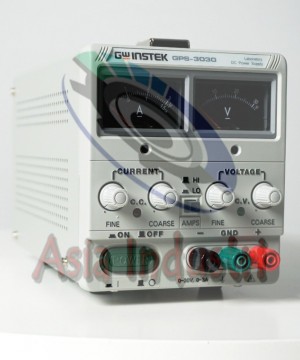

GW Instek GPS-3030 90W D.C. Power Supply

GW Instek GPS-3030 90W D.C. Power Supply

============================================================

Features

·         Light and Compact Design

·         0.01% High Regulation

·         Constant Voltage and Constant Current Operation

·         Remote Control for External Programmability

·         Internal Select for Continuous or Dynamic Load

·         Low Ripple and Noise

·         Overload and Reverse Polarity Protection

·         Series or Parallel Operation

============================================================

Specifications

OUTPUT VOLTS (V) : 0 – 30V

OUTPUT AMPS (A) : 0 – 3A

WATT : 90W

ConSTANT VOLTAGE OPERATION

-Regulation : Line regulation ≤0.01% + 3mV; Load regulation ≤0.01% + 3mV (rating current ≤3A), ≤0.01% + 5mV (rating current >3A)

-Ripple & Noise : ≤0.5mVrms 5Hz - 1MHz (rating current ≤3A), ≤1mVrms 5Hz - 1MHz (rating current >3A)

-Recovery Time : 100µS (50% load change, minimum load 0.5A)

-Temp. Coefficient : 300 ppm/°C

-Output Range : 0 to rating voltage continuously adjustable

ConSTANT CURRENT OPERATION

-Regulation : Line regulation ≤0.2% + 3mA; Load regulation ≤0.2% + 3mA

-Ripple Current : ≤3mArms

-Output Current : 0 to rating current continuously adjustable (Hi/Lo range switchable)

METER

-Analog : V-meter and I-meter; 2.5 class; Dimension 50 x 50 mm

INSULATION

-Chassis and Terminal : 20MΩ or above (DC 500V)

-Chasssis and AC Cord : 30MΩ or above (DC 500V)

POWER SOURCE : AC 100V/120V/ 220V/240V ±10%, 50/60Hz

DIMENSIONS & WEIGHTS : 128(W) x 145(H) x 285(D) mm, Approx. 5 kg

ACCESSORIES : User manual x 1, Power cord x 1, Test Lead GTL-105A x 1 (≤3A) or GTL-104A x 1 (≤10A)

===========================================================
