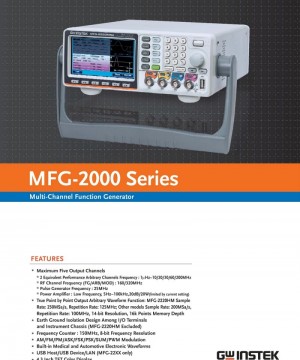

GW Instek MFG-2260MFA 60MHz Dual Channel Arbitrary Function Generator

GW Instek MFG-2260MFA 60MHz Dual Channel Arbitrary Function Generator with Pulse Generator, Modulation, 160MHz RF Signal Generator, Power Amplifier

============================================================

Features

·         Maximum Five Output Channels

·         2 Equivalent Performance Arbitrary Channels Frequency : 1μHz~10/20/30/60/200MHz

·         RF Channel Frequency (FG/ARB/MOD) : 160/320MHz

·         Pulse Generator Frequency : 25MHz

·         Power Amplifier : Low Frequency, 100kHz, Output 20W

·         Earth Ground Isolation Design Among I/O Terminals and Instrument Chassis (MFG-2220HM Excluded)

·         Frequency Counter : 150MHz, 8 bits Frequency Resolution

·         AM/FM/PM/ASK/FSK/PSK/SUM/PWM Modulation

·         USB Host/USB Device/LAN (MFG-22XX only)

============================================================

Specifications

WAVEFORMS : Sine, Square, Triangle, Ramp, Pulse, Noise

ARBITRARY FUNCTIONS

*Sample Rate : 200MSa/s

*Repetition Rate : 100MHz

FREQUENCY CHARACTERISTICS

*Range : 60MHz (CH1); 60MHz (CH2)

*Resolution : 1µHz

RF GENERATOR

*Range : 1µHz – 160MHz(DDS)/1µHz – 60MHz(ARB)

*Resolution : 1µHz

PULSE GENERATOR

*Frequency : 1µHz – 25MHz

*Pulse Width : 20nS – 999.7ks

BURST

*Frequency : 25MHz (sine, square); 1MHz (triangle, ramp)

*Pulse Count : 1 – 1000000 Cycles or intfinite

FREQUENCY COUNTER

*Range : 5Hz – 150MHz

*Accuracy : Time base accuracy ± 1 count

DISPLAY : 4.3 inch TFT LCD, 480 x 3 (RGB) x 272

INTERFACE : LAN, USB

POWER SOURCE : AC 100 – 240V, 50 – 60Hz

DIMENSIONS & WEIGHT : 266 (W) x 107 (H) x 293 (D) mm, Approx. 2.5kg

ACCESSORIES : Quick Start Guide x 1, CD-ROM with MFG Software and User Manual x 1, GTL-101 BNC-Alligator test lead x 2

===========================================================
