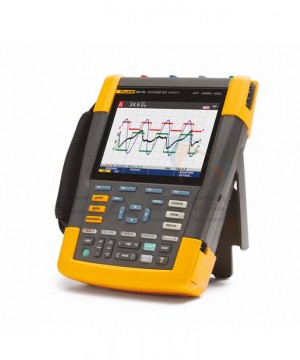

Fluke 190-104 ScopeMeter® Test Tool

Fluke 190-104 ScopeMeter® Test Tool

============================================================

Features

·         Two electrically isolated inputs

·         CAT III 1000 V / CAT IV 600 V safety rated

·         100 MHz bandwidth model

·         1.25 GS/s

·         Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details

·         Dedicated 5000 Count digital multimeter

·         Connect-and-View continuous auto-trigger, single shot, pulse width, and video triggering

·         ScopeRecord roll mode, capture waveform sample data for up to 48 hours

·         TrendPlot, trend measurement readings for up to 22 days

·         Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)

·         IP-51 rated for dust and drip proof to withstand harsh environments

·         Isolated USB ports for memory devices and PC connectivity

============================================================

Specifications

Bandwidth : 100 MHz

Number of channels : 100MHz: 4 channels

Real-time sample rate : 1.25 GS/s

Inputs : 4scope plus DMM input

Independently floating isolated inputs : Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground

Timebase range : G5 ns - 2 min/div

Input sensitivity : 2 mV-100 V/div

Trigger types : Connect-and-View™, Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Video Line, Selectable pulse width, N-Cycle

Trigger source : Any scope input channel, or external via DMM

Glitch capture : 8 ns

Scope measurements : Cursor: 7; Automatic: 30

Maximum record length : ScopeRecord mode: 30,000 pts; Scope mode: 10,000 pts per input

Persistence : Digital persistence giving analog oscilloscope-like waveform decay

Waveform compare : Waveform reference with automatic Pass/Fail testing

Size : 270 x 190 x 70 mm

Weight : 2.2 kg

Li-Ion battery : BP291 4800 mAh battery up to 7 Hours included standard

Included Accessories : VPS410 Voltage Probe Sets (one red, one blue, one grey, one green), BC190 Battery Charger/mains Adapter, BP291 4800 mAh high capacity Li-ion Battery, Handstrap (affixed to instrument), Hangstrap, FlukeView ScopeMeter® demo package (restricted functionality), USB Interface Cable

===========================================================
