GW Instek MFG-2110 10MHz Single Channel Arbitrary Function Generator with Pulse Generator

GW Instek MFG-2110 10MHz Single Channel Arbitrary Function Generator with Pulse Generator

============================================================

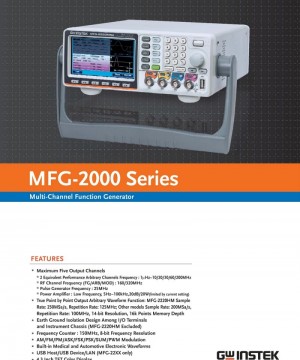

Features

·         Maximum Five Output Channels

·         2 Equivalent Performance Arbitrary Channels Frequency : 1μHz~10/20/30/60/200MHz

·         RF Channel Frequency (FG/ARB/MOD) : 160/320MHz

·         Pulse Generator Frequency : 25MHz

·         Power Amplifier : Low Frequency, 100kHz, Output 20W

·         True Point by Point Output Arbitrary Waveform Function: MFG-2220HM Sample Rate: 250MSa/s, Repetition Rate: 125MHz; Other models Sample Rate: 200MSa/s, Repetition Rate: 100MHz, 14-bit Resolution, 16k Points Memory Depth

·         Earth Ground Isolation Design Among I/O Terminals and Instrument Chassis (MFG-2220HM Excluded)

·         Frequency Counter : 150MHz, 8 bits Frequency Resolution

·         AM/FM/PM/ASK/FSK/PSK/SUM/PWM Modulation

============================================================

Specifications

WAVEFORMS : Sine, Square, Ramp, Pulse, Noise

ARBITRARY WAVEFORMS

*ARB Function : Built in

*Sample Rate : 200 MSa/s

*Repetition Rate : 100MHz

*Waveform Length : 16k points

*Amplitude Resolution : 14 bits

FREQUENCY CHARACTERISTICS

*Range : 10MHz

*Resolution : 1µHz

PULSE CHARACTERISTICS

*Frequency : 1µHz – 25MHz

*Pulse Width : ≥20nS

DISPLAY : 4.3 inch TFT LCD; 480 x 3(RGB) x 272

INTERFACE : USB

POWER SOURCE : AC 100 – 240V, 50 – 60Hz

DIMENSIONS & WEIGHT : 266 (W) x 107 (H) x 293 (D)mm, Approx. 2.5kg

ACCESSORIES : Quick Start Guide x 1, CD-ROM with MFG Software and User Manual x 1, GTL-101 GTL-101 BNC-Alligator test lead x 1

===========================================================
