CyberTech CFG-1003B 3MHz Function Generator

CyberTech CFG-1003B Function Generator

============================================================

Features

·         Simple structure and highly cost-effective

·         Output 16 waveforms

·         FM, AM, PM, PWM and FSK modulation

·         Provide frequency sweep and burst

·         Standard configuration interface : USB device

============================================================

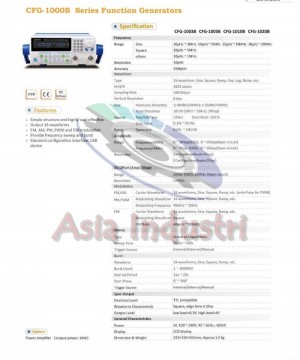

Specifications

FREQUENCY

*Sine : 10µHz – 3MHz

*Square : 10µHz – 5MHz

*Other : 10µHz – 1MHz

*Resolution : 10µHz

*Accuracy : ±50ppm

WAVEFORM

*Type : 16 waveform Sine, Square, Ramp, Exp, Log, Noise, etc

*Length : 1024 points

*Sampling Rate : 100 MSa/s

*Vertical Distortion : 8 bits

AMPLITUDE

*Frequency ≤8MHz : 0 – 10Vpp (50Ω), 0 – 20Vpp (Open circuit)

*Frequency ≥8MHz : 0 – 9Vpp (50Ω), 0 – 18Vpp (Open circuit)

*Resolution : 5mVpp (Amplitude >2Vpp)

DC OFFSET (Ampl. 0Vpp)

*Range : ±5VDC (50Ω), ±10VDC (Open circuit)

*Resolution : 5mVDC

SWEEP

*Type : Linear or Logarithmic

*Sweep Time : 50ms – 500s

*Trigger Source : Internal/External/Manual

BURST

*Burst Count : 1 – 1000000

*Internal Period : 1µs – 20s

*Start Phase : 0° - 360°

SYNC OUTPUT

*Electrical Level : TTL compatible

*Waveform Characteristic : Square, edge time ≤ 20ns

*Output Level : Low level <0.3V, high level >4V

GENERAL

*Power : AC 100 – 240V, 45 – 65Hz, <20VA

*Display : LCD display

*Dimension & Weight : 332(W) x 256(D) x 102(H), Approx. 1.5 kg

===========================================================
