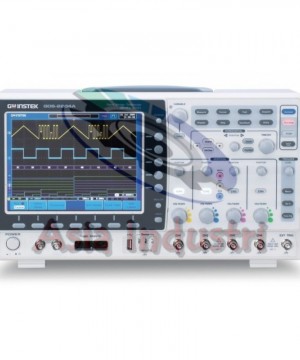

GW Instek GDS-2104A 100MHz, 4-Channel, Digital Storage Oscilloscope

GW Instek GDS-2104A 100MHz, 4-Channel, Digital Storage Oscilloscope

============================================================

Features

·         100MHz Bandwidth, 4 Input Channel

·         2GSa/s Real-time Sampling Rate and 100GSa/s Equivalent Time Sampling Rate

·         2Mega Points Record Length

·         1mV /div to 10V/div of Vertical Range

·         1ns/div to 100s/div of Time base Range

·         80,000 wfm/s of Waveform Update Rate

·         Built-in Segmented Memory and Waveform Search Functions to Optimize the Efficiency of Record Length

============================================================

Specifications

VERTICAL SENSITIVITY

*Channels : 4Ch+Ext

*Bandwidth : DC-100MHz(-3dB)

*Calculated Rise Time : 3.5ns

*Bandwidth Limit : 20MHz

*Vertical Resolution : 8 bits @1M : 1mV - 10V

TRIGGER

*Sources : CH1, CH2, CH3, CH4, Line, EXT

*Modes : Auto (Supports Roll Mode for 100 ms/div and slower), Normal, Single Sequence

EXTERNAL TRIGGER

*Range : ±15V

*Sensitivity : DC - 100MHz Approx. 100mV; 100MHz - 200MHz Approx. 150mV ; 200MHz - 300MHz Approx. 150mV

*Input Impedance : 1MΩ ±3%, -16pF

HORIZONTAL

*Timebase Range : 1ns/div - 100s/div (1‐2‐5 increments); ROLL : 100ms/div - 100s/div

*Pre‐trigger : 10 div maximum

*Post‐trigger : 1000 div maximum. The number of divisions depends on the time division.

DISPLAY : 8” TFT LCD 800 x 600 SVGA Color Display

INTERFACE : RS232C, USB Port, Go-NoGo BNC, Kensington Style Lock

POWER SOURCE : AC 100V – 240V, 50Hz – 60Hz, Auto Selection

DIMENSION & WEIGHT : 380(W) x 220(H) x 145(D)mm, Approx. 4.2 kg

ACCESSORIES : User manual CD x 1 , Power cord x 1, GTP-150A-2 150MHz(10:1/1:1) Switchable passive probe for GDS-2102A/2104A(One per channel)

===========================================================
