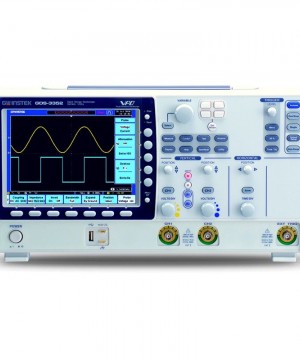

GW Instek GDS-3252 250MHz, 2-Channel Visual Persistance Oscilloscope

GW Instek GDS-3252 250MHz, 2-Channel Visual Persistance Oscilloscope

============================================================

Features

·         250MHz with 2 Channels

·         Independent Memory for Each Channel

·         VPO Technology

·         Split Screen Function

·         3 Built-in Impedances (50Ω/75Ω/1MΩ)

============================================================

Specifications

VERTICAL

*Bandwidth : DC – 250MHz (-3dB)

*Channels : 2 + Ext

*Calculated Rise Time : 1.4ns

*Resolution : 8 bit

TRIGGER

*Sources : CH1, CH2, Line, EXT

*Modes : Auto (supports Roll Mode for 100 ms/div and slower), Normal, Single Sequence

EXTERNAL TRIGGER

*Range : ±15V

*Input Impedance : 1MΩ ±3%, -16pF

HORIZONTAL

*Timebase Range : 1ns/div - 100s/div (1‐2‐5 increments); ROLL : 100ms/div - 100s/div

*Pre‐trigger : 10 div maximum

*Post‐trigger : 1000 div maximum. The number of divisions depends on the time division.

*Timebase Accuracy : ±20 ppm over any ≥1 ms time interval

DISPLAY : 8” TFT LCD 800 x 600 SVGA Color Display

INTERFACE : RS232C, USB Port, Ethernet Port (LAN), Go-NoGo BNC, GPIB, Internal 64MB

POWER SOURCE : AC 100V – 240V, 48Hz – 63Hz, Auto Selection, 96VA

DIMENSION & WEIGHT : 400(W) X 200(H) X 130(D) mm, Approx. 4kg

ACCESSORIES : User manual CD x 1 , Power cord x 1, GTP-251R 250MHz(10:1) passive probe for GDS-3252/3254 (per channel)

===========================================================
