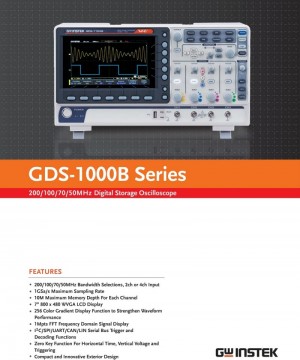

GW Instek GDS-1102B 100MHz, 2 Channels, Digital Storage Oscilloscope

GW Instek GDS-1102B 100MHz, 2 Channels, Digital Storage Oscilloscope

============================================================

Features

·         100MHz bandwidth selections, 2ch input

·         1GSa/s maximum sampling rate

·         10M maximum memory depth for each channel

·         7” 800 x 480 WVGA LCD display

·         256 color gradient display function to strengthen waveform performance

·         I2C/SPI/UART/CAN/LIN serial bus trigger and decoding functions

·         1Mpts FFT frequency domain signal display

·         Zero Key function for horizontal time, vertical voltage and triggering

·         Compact and innovative exterior design

============================================================

Specifications

VERTICAL

*Channels : 2 + Ext

*Bandwidth : DC-100MHz(-3dB)

*Calculated Rise Time : 3.5ns

*Bandwidth Limit : 20MHz

TRIGGER

*Source : CH1, CH2

*Trigger Mode : Auto, Normal, Single Sequence

EXTERNAL TRIGGER

*Range : ±15V

*Sensitivity : DC - 100MHz Approx. 100mV ; 100MHz - 200MHz Approx. 150mV

HORIZONTAL

*Time base Range : 5ns/div - 100s/div (1-2-5 increments)

*Pre-Trigger : 10 div maximum

*Post-Trigger : 2,000,000 maximum

DISPLAY : 7” TFT WVGA 800 x 480 LCD Color Display

INTERFACE : USB Port, Ethernet Port (LAN), Go-NoGo BNC, Kensington Style Lock

POWER SOURCE : AC 100V – 240V, 50Hz – 60Hz, Auto Selection, 30 Watts

DIMENSIONS & WEIGHT : 380(W) x 208(H) x 127.3(D)mm, Approx. 2.8kg

ACCESSORIES : User manual CD x  1, Power cord x 1, GTP-100B-4 100MHz Passive Probe. Suitable for GDS-1104B, GDS-1102B

===========================================================
