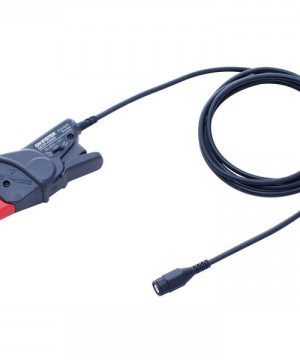

GW Instek GCP-020 10kHz/200A A.C./D.C. Current Probe

GW Instek GCP-020 10kHz/200A A.C./D.C. Current Probe

============================================================

Features

·         Bandwidth : 40Hz – 10kHz

·         Measurement Range : 100mA – 20A and 500mA – 200A

·         Accuracy : ≤ 2% (100mA – 20A); ≤ 1.5% (500mA – 200A)

·         Jaw Opening : 21mm Diameter

============================================================

Specifications

Bandwidth : 40Hz – 10kHz

Ratio : 100mA – 20A; 500mA – 200A

Accuracy : ≤ 2% (100mA – 20A peak); ≤ 1.5% (500mA – 200A peak)

Nominal Measuring Scope : 500mA – 200A and 100mA – 20A

Ratio Input/Output : 1A - / 10mV – and 1A - / 100mV

Sinusoidal Current : 48 – 65Hz

Connection : BNC

Direct Current : No

Temperature & Humidity Range (Guaranteed Accuracy) : 20 to 26°C, relative humidity; 20 to 75% (no condensation)

Continuous Magnetic Field : Earth Field (< 40A / m)

Proximity of External Conductors : No current

Measuring Device Impedance : > 1mW and < 100pF

Max. Clamping Capacity : Ø 20mm cable or 20 x 5mm bar

Location for Use : Altitude up to 2000m, Indoors

Dimensions : 135(W) x 50(H) x 30(D) mm

Open Jaw Height : 69mm

Weight : Approx. 180g

Jaw Opening : 21mm

===========================================================
