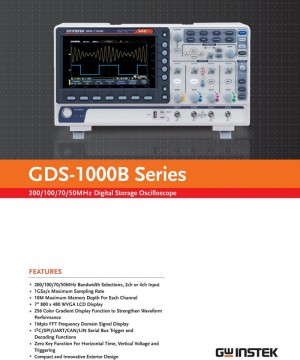

GW Instek GDS-1072B 70MHz, 2-Channel Digital Storage Oscilloscope

GW Instek GDS-1072B 70MHz, 2-Channel Digital Storage Oscilloscope

============================================================

Features

·         70MHz bandwidth selections, 2ch input

·         1GSa/s maximum sampling rate

·         10M maximum memory depth for each channel

·         256 color gradient display function to strengthen waveform performance

·         I2C/SPI/UART/CAN/LIN serial bus trigger and decoding functions

·         1Mpts FFT frequency domain signal display

·         Zero Key function for horizontal time, vertical voltage and triggering

·         Compact and innovative exterior design

============================================================

Specifications

Channels : 2 + Ext

Bandwidth : DC-70MHz(-3dB)

Calculated Rise Time : 5ns

Bandwidth Limit : 20MHz

Vertical Sensitivity Resolution : 8 bit : 1mV-10V/div

Input Coupling : AC, DC, GND

Input Impedance : 1MΩ//16pF approx.

DC Gain Accuracy : ±3%

Display : 7” 800 x 480 TFT WVGA color display

Waveform Update Rate : 50.000 waveform per second, maximum

Interface : USB Port, Ethernet Port (LAN), Go-NoGo BNC

Power Source : AC 100V – 240V, 50Hz – 60Hz, Auto selection, Power consumption : 30W

Dimensions and Weight : 380(W) x 208(H) x 127.3(D) mm; Approx. 2.8kg

Accessories : User manual CD x 1 ,power cord x 1, GTP-070B-4 70MHz Passive Probe.Suitable for GDS-1074B,GDS-1072B,GDS-1054B

===========================================================
