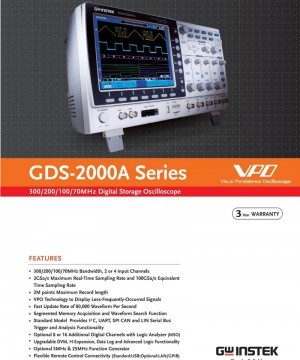

GW Instek GDS-2074A 70MHz, 4-Channel Digital Storage Oscilloscopes

GW Instek GDS-2074A 70MHz, 4-Channel Digital Storage Oscilloscopes

============================================================

Features

·         70MHz Bandwidth, 4 Input Channel

·         2GSa/s Real-time Sampling Rate and 100GSa/s Equivalent Time Sampling Rate

·         2Mega Points Record Length

·         1mV /div to 10V/div of Vertical Range

·         1ns/div to 100s/div of Time base Range

·         80,000 wfm/s of Waveform Update Rate

·         Built-in Segmented Memory and Waveform Search Functions to Optimize the Efficiency of Record Length

·         Zoom Window and Play/Pause can Rapidly Navigate the Waveforms

·         36 Automatic Measurement Functions Offers Various Measurement Selections

============================================================

Specifications

Bandwidth (-3dB) : 70MHz

Channels : 4ch+EXT

Calculated Rise Time : 5ns

Bandwidth Limit : 20MHz

Vertical Resolution : 8 bits @ 1M : 1mV – 10V/div

Input Coupling : AC, DC, GND

Input Impedance : 1MΩ//16pF approx.

DC Gain Accuracy : ±(3% X |Readout| + 0.1div + 1mV) when 2mV/div or greater is selected; (5% X |Readout| + 0.1div + 1mV) when 1mV/div is selected

Polarity : Normal & Invert

Maximum Input Voltage : 300Vrms, CAT I

Display : 8” 800 x 480 TFT LCD SVGA color display

Waveform Update Rate : 80,000 waveforms per second, maximum

Interface : RS232C, USB Port, Ethernet Port, Go-NoGo BNC

Power Source : AC 100 to 240V, 50 to 60Hz, auto selection

Storage Temperature : 0 to 50°C

Dimensions (WxHxD) : 380 x 220 x 145 mm

Weight : Approx. 4.2 kg

Accessories : User Manual CD x 1, Power Code x 1, GTP-070B-4 70MHz (10:1/1:1) Switchable passive probe for GDS-2072A/2074A (one per channel)

===========================================================
