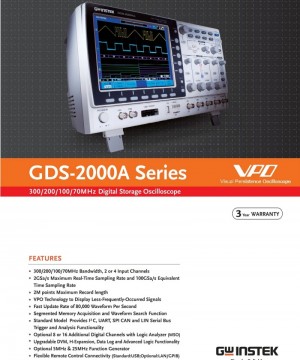

GW Instek GDS-2202A 100MHz, 2-Channels Digital Storage Oscilloscope

GW Instek GDS-2202A 100MHz, 2-Channels Digital Storage Oscilloscope

============================================================

Features

·         200MHz Bandwidth, 2 Input Channel

·         2GSa/s Real-time Sampling Rate and 100GSa/s Equivalent Time Sampling Rate

·         2Mega Points Record Length

·         1mV /div to 10V/div of Vertical Range

·         1ns/div to 100s/div of Time base Range

·         80,000 wfm/s of Waveform Update Rate

·         8 inch 800*600 High Resolution TFT LCD Display

·         Built-in Segmented Memory and Waveform Search Functions to Optimize the Efficiency of Record Length

·         Zoom Window and Play/Pause can Rapidly Navigate the Waveforms

·         36 Automatic Measurement Functions Offers Various Measurement Selections

============================================================

Specifications

Bandwidth (-3dB) : 100MHz

Channels : 2ch+EXT

Rise Time : 3.5ns

Bandwidth Limit (-3dB) : 20MHz

Vertical Resolution : 8 bit; 1mV-10V/div

Input Coupling : AC, DC, GND

Input Impedance : 1MΩ// 16pF

DC Gain : Accuracy ±(3% X |Readout| + 0.1div + 1mV)

Polarity : Normal & Invert

Maximum Input Voltage : 300Vrms, CAT I

Real Time Sample Rate : 1CH : 2Gsa/s; 2CH : 1Gsa/s

Display : 8” 800 x 600 TFT LCD SVGA color display

Waveform Update Rate : 80,000 waveforms per second, maximum

Interface : RS232C, USB Port, Ethernet Port, Go-NoGo BNC

Power Source : AC 100 to 240V, 50 to 60Hz, auto selection

Storage Temperature : -10 to 70°C, Humidity: ≤70%

Dimensions (WxHxD) : 380 x 220 x 145mm

Weight : Approx. 4.2kg

Accessories : User Manual CD x 1, Power Code x 1, GTP-250A-2 250MHz(10:1/1:1) Switchable passive probe for GDS-2202A/2204A(One per channel)

===========================================================
