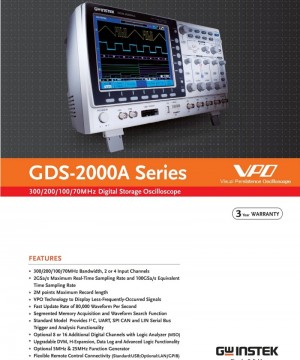

GW Instek GDS-2302A 300MHz, 2-Channel, Digital Storage Oscilloscope

GW Instek GDS-2302A 300MHz, 2-Channel, Digital Storage Oscilloscope

============================================================

Features

·         300MHz Bandwidth,2 Input Channel

·         2GSa/s Real-time Sampling Rate and 100GSa/s Equivalent Time Sampling Rate

·         2Mega Points Record Length

·         1mV /div to 10V/div of Vertical Range

·         1ns/div to 100s/div of Time base Range

·         80,000 wfm/s of Waveform Update Rate

·         8 inch 800*600 High Resolution TFT LCD Display

·         Built-in Segmented Memory and Waveform Search Functions to Optimize the Efficiency of Record Length

·         Zoom Window and Play/Pause can Rapidly Navigate the Waveforms

·         36 Automatic Measurement Functions Offers Various Measurement Selections

============================================================

Specifications

Bandwidth (-3dB) : 300MHz

Channels : 2

Rise Time : 1.17ns

Banwidth Limit (-3dB) : 20M/100M/200MHz

Resolution : 8 bit : 1mV – 10V/div

Input Coupling : AC, DC, GND

Input Impedance : 1MΩ//16pF

DC Gain Accuracy : ±(3% X |Readout| + 0.1div + 1mV)

Polarity : Normal & Invert

Maximum Input Voltage : 300V RMS, CAT I

Display : 8” 800 x 600 TFT LCD WVGA color display

Interface : RS232C, USB Port, Ethernet Port, Go-NoGo BNC

Power Source : AC 100 – 240V, 50 – 60Hz, auto selection

Operating Temperature : 0°C to 50°C

Dimensions (WxHxD) : 380 x 220 x 145 mm

Weight : Approx. 4.2 kg

Accessories : User Manual CD x 1, Power Code x 1, GTP-350A-2 350MHz(10:1/1:1) Switchable passive probe for GDS-2302A/2304A(One per channel)

===========================================================
