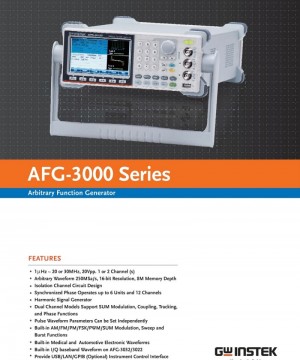

GW Instek AFG-3031 30MHz Single Channel Arbitrary Function Generator

youtu.be/LD6IiCwmX54

GW Instek AFG-3031 30MHz Single Channel Arbitrary Function Generator

============================================================

Features

·         1uHz to 20 or 30MHz, 16-bit resolution with 1 mVpp to 10 Vpp amplitude. 1 or 2 channel (s)

·         250 MSa/s sampling rate for higher time resolution arbitrary waveforms

·         8M Points/channel standard waveform memory

·         Input/output signal ground independent of housing and signal ground between channels also insulated.

·         Synchronized phase operates up to 6 units and 12 channels

·         Pulse waveform parameters can be set independently for more precise timing

·         Harmonic signal generator

·         Dual channel models support SUM modulation, coupling, tracking, and phase functions

·         Built-in AM/FM/PM/FSK/PWM/SUM modulation, sweep and burst functions

·         Provide USB/LAN/GPIB (optional) instrument control interface

============================================================

Specifications

Frequency :

- Sine/Square : 1µHz – 30MHz

- Pulse : 1µHz – 25MHz

- Triangle/Ramp : 1µHz – 1MHz

- Resolution : 1µHz

Sample Rate : 250 Msa/s

Repetition Rate : 125MHz

Waveform Length : 8M points

Amplitude Resolution : 16 bits

Non-Volatile Memory : Ten 8M wafeforms

User define Output Section : Any section from 2 – 8M points

Trigger : Infinite/Manual/External

Display : 4.3 inch TFT LCD, 480 x 3 (RCB) x 272

Interface : LAN, USB

Power Source : AC 100 – 240V, 50 – 60Hz

Power Consumption : 50VA

Operating Temperature : 0°C to 40°C

Dimensions (WxHxD) : 265 x 107 x 374 mm

Weight : Approx. 4 kg

Accessories : GTL-101, BNC-Alligator Test Lead x 1 (only AFG-3031/AFG-3021), Quick Start Guide x 1, CD-ROM with AFG software and user manual x 1

===========================================================
