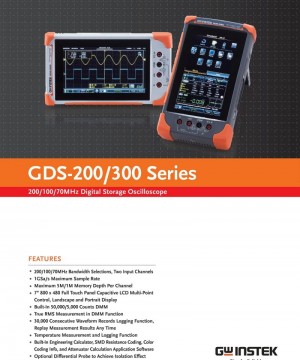

GW Instek GDS-220 200MHz Handheld Digital Storage Oscilloscopes

GW Instek GDS-220 200MHz Handheld Digital Storage Oscilloscopes

============================================================

Features

·         200MHz Handheld Oscilloscope

·         2 Input Channels

·         1GSa/s Maximum Sampling rate

·         Maximum 5M Memory Depth Per Channel

·         7” 800 x 480 Full Touch Panel Capacitive LCD Multi-Point Control, Landscape and Portrait Display

·         Built-In 50,000/ 5,000 Counts DMM

·         True RMS measurement in DMM function

·         30,000 Consecutive Waveform Records Logging Function, Replay Measurement Results Any Time

·         Temperature Measurement and Logging Function

·         Built-In Engineering Calculator, SMD Resistance Coding, Color Coding Info, and Attenuator Calculation Application Software

============================================================

Specifications

Channels : 2 (BNC-Shield)

Input Impedance : 1MΩ±2%, 16.5pf approx.

Maximum Input : CAT II 300VRMS

Input Coupling : AC, DC, GND

Bandwidth : DC-200MHz (-3dB)

Rise Time : 1.75ns

Sensitivity : 2mV/div - 10V/div (1-2-5 increments)

Accuracy : ±(3% x Readout + 0.1 div + 1mV)

Bandwidth Limit : 20MHz(-3dB)

Polarity : Normal, Invert

Display : 7 inch 480 x 800 Capacitive Touchscreen

Interface : USB, Internal 120MB

Power Source : AC 100V – 240V, 48Hz – 63Hz, Power Consumption 40W

DC Output L 12V/3A, Double Shield

Dimensions (WxHxD) : 136 x 240 x 59.7 mm

Weight : Approx. 1.5 kg

Accessories : User Manual CD x 1, Power Code x 1, GTP-250B-2 250MHz Probe. Suitable for GDS-320/220, GTL-207 Multimeter Test Lead x 2, GSC-010 Soft Carrying Case, GSC-011 Soft Carrying Bag, GAP-001 AC-DC Adaptor, GWS-001 Wrist Strap

===========================================================
