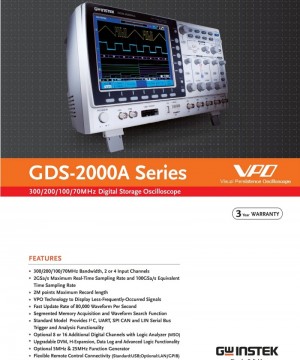

GW Instek GDS-2304A 300MHz, 4 Channels Digital Storage Oscilloscopes

GW Instek GDS-2304A 300MHz, 4 Channels Digital Storage Oscilloscopes

============================================================

Features

·         300MHz Bandwidth, 4 Input Channel

·         2GSa/s Real-time Sampling Rate and 100GSa/s Equivalent Time Sampling Rate

·         2Mega Points Record Length

·         1mV /div to 10V/div of Vertical Range

·         1ns/div to 100s/div of Time base Range

·         80,000 wfm/s of Waveform Update Rate

·         8 inch 800*600 High Resolution TFT LCD Display

·         Built-in Segmented Memory and Waveform Search Functions to Optimize the Efficiency of Record Length

·         Zoom Window and Play/Pause can Rapidly Navigate the Waveforms

·         36 Automatic Measurement Functions Offers Various Measurement Selections

============================================================

Specifications

Bandwidth : DC-300MHz (-3dB)

Channel : 4ch+Ext

Rise Time : 1.17ns

Bandwidth Limit : 20M/100M/200MHz (-3dB)

Resolution : 8 bit (1mV – 10V/div)

Input Coupling : AC, DC, GND

Input Impedance : 1MΩ/16pF

Display : 8” 800 x 600 TFT LCD SVGA Color Display

Interpolation : Sin(x)/x & Equivalent Time Sampling

Waveform Display : Dots, Vectors, Variable Persistance (16ms – 10s), Infinite Persistance

Waveform Update Rate : 80,000 Waveforms per Second, Maximum

Interface : RS232C, USB Port, Ethernet Port, Go-NoGo BNC

Operating Temperature : 0°C to 50°C

Power Source : AC 100V – 240V, 50Hz – 60Hz, auto selection

Dimensions (WxHxD) : 380 x 220 x 145 mm

Weight : Approx. 4.2 kg

Accessories : User Manual CD x 1, Power Code x 1, GTP-350A-2 350MHz(10:1/1:1) Switchable passive probe for GDS-2302A/2304A (One per channel)

===========================================================
