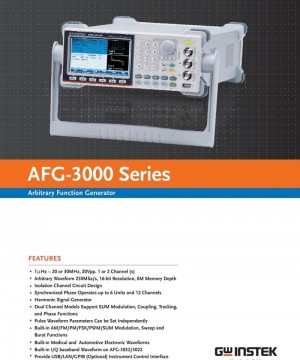

GW Instek AFG-3032 30MHz, Dual Channels Arbitrary Function Generator

GW Instek AFG-3032 30MHz, 2 Channels Arbitrary Function Generator

============================================================

Features

·         1uHz to 20 or 30MHz, 16-bit resolution with 1 mVpp to 10 Vpp amplitude. 1 or 2 channel (s)

·         250 MSa/s sampling rate for higher time resolution arbitrary waveforms

·         8M Points/channel standard waveform memory

·         Input/output signal ground independent of housing and signal ground between channels also insulated.

·         Synchronized phase operates up to 6 units and 12 channels

·         Pulse waveform parameters can be set independently for more precise timing

·         Harmonic signal generator

·         Dual channel models support SUM modulation, coupling, tracking, and phase functions

·         Built-in AM/FM/PM/FSK/PWM/SUM modulation, sweep and burst functions

·         Provide USB/LAN/GPIB (optional) instrument control interface

·         IQ baseband waveform output function for AFG-3032/3022

============================================================

Specifications

Channels : 2

Frequency Range : DC to 30 MHz

Sample Rate : 250 MSa/s

Repetition Rate : 125MHz

Waveform Length : 8M points

Amplitude Resolution : 16 bits

Waveforms :

- Frequency Sweep: Sine, Square, Triangle, Ramp

- Amplitude Sweep: Sine, Square, Triangle, Ramp, Pulse, Noise, ARB

Power Source : AC 100 to 240V, 50 to 60Hz

Storage Temperature : -10 to 70°C, Humidity: ≤70%

Dimensions (WxHxD) : Bench Top : 265 (W) x 107 (H) x 374 (D)

Weight : Approx. 4kg

Accessories : GTL-101, BNC-Alligator Test Lead x 2, Quick Start Guide x 1, CD-ROM with AFG software and user manual x 1

===========================================================
