GW Instek GCP-530 50MHz/30A Current Probe (Oscilloscope Accessories)

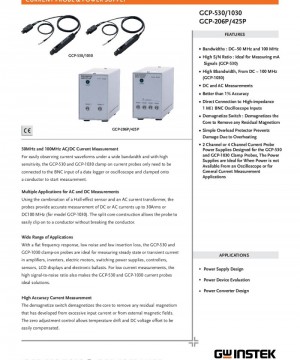

GW Instek GCP-530 50MHz/30A Current Probe

============================================================

Features

·         Bandwidths : DC~50 MHz and 100 MHz

·         High S/N Ratio : Ideal for Measuring mA Signals

·         DC and AC Measurements

·         Better than 1% Accuracy

·         Direct Connection to High-impedance 1ΩM BNC Oscilloscope Inputs

·         Demagnetize Switch : Demagnetizes the Core to Remove any Residual Magnetism

·         Simple Overload Protector Prevents Damage Due to Overheating

·         2 Channel or 4 Channel Current Probe Power Supplies Designed for the GCP-530 and GCP-1030 Clamp Probes, The Power Supplies are Ideal for When Power is not Available From an Oscilloscope or for General Current Measurement Applications

============================================================

Specifications

Probe Bandwidth : DC – 50MHz

Rise Time : 7ns or less

Maximum Continuous Input Range : 30A RMS

Maximum Peak Current Value : 50A peak

Output Voltage Rate : 0.1V/A

Amplitude Accuracy : ±1.0%rdg ±1mV (0~30Arms/DC, 45~66Hz); ±2.0%rdg (30Arms~50A peak/DC, 45~66Hz)

Noise : 2.5mA RMS or less

Rate Supply Voltage : ±12V ±0.5V

Conductor Diameter : Max. 5mm

Maximum Rated Power : 5.6VA

Maximum Rated Voltage : 300V, CAT I

Safety Standards : EN6010, Over voltage category II, III (anticipated transient over voltage 4000V). Pollution degree 2

===========================================================
