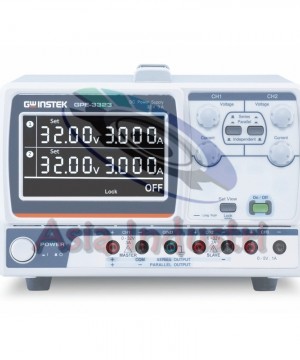

GW Instek GPE-3323 217W 3 Channel Linear DC Power Supply

GW Instek GPE-3323 217W 3 Channel Linear DC Power Supply

============================================================

Features

·         1/2/3/4 Independent Isolated Output

·         4.3 Inch LCD Display

·         Setting & Read Back Resolution 100mV/10mA (*1)

·         Output On/off

·         Analog Control (Remote I/O) For Output ON/OFF

·         Set View Function For Checking an Original V/I Setting During Output On

·         Key Lock Function

·         Tracking Series And Parallel Operation

·         Smart Cooling Fan Achieving Low Noise

============================================================

Specifications

OUTPUT MODE

-Number of Channel : 3CH

-Voltage : 0 – 32V (CH1 & CH2); 5V (CH3)

-Current : 0 – 3A (CH1 & CH2); 5A (CH3)

-Tracking Series Voltage : 0 – 64V

-Tracking Parallel Current : 0 – 6A

ConSTANT VOLTAGE OPERATION

-Line Regulation : ≤0.01% + 3mV

-Load Regulation : ≤0.01% + 3mV (rating current ≤3A); ≤0.02% + 5mV (rating current >3A)

-Ripple & Noise : ≤1mVrms (5Hz – 1MHz)

-Recovery Time : ≤100µS (50% Load change, Minimum load 0.5A)

ConSTANT CURRENT OPERATION

-Line Regulation : ≤0.2% + 3mA

-Load Regulation : ≤0.2% + 3mA

-Ripple & Noise : ≤3mArms

TRACKING OPERATION

-Tracking Error : ≤ 0.1%+10mV of Master(0~32V) No Load , with Load add load regulation ≤100mV)

-Parallel Regulation : Line : ≤0.01%+3mV; Load : ≤0.01%+3mV(rating current ≤3A); ≤0.02%+5mV(rating current >3A)

-Series Regulation : Line : ≤0.01%+5mV; Load : ≤100mV

-Ripple & Noise : ≤2mVrms, 5Hz – 1MHz

CH3 OPERATION

-Output Voltage : 5.0V ±5%

-Output Current : 5A

-Line Regulation : ≤3mV

-Load Regulation : ≤5mV

-Ripple & Noise : 1mVrms (5Hz – 1MHz)

METER

-Voltage Resolution : 100mV

-Current Resolution : 10mA

-Setting Accuracy : Voltage ±(0.1% of reading +30mV); Current ±(0.3% of reading +6mA)

-Readback Accuracy : Voltage ±(0.1% of reading +30mV); Current ±(0.3% of reading +6mA)

INSULATION

-Chassis and Terminal : 20MΩ or above (DC 500V)

-Chassis and AC Cord : 30MΩ or above (DC 500V)

POWER SOURCE : AC100V/120V/220V ±10%; 230V(+10%~-6%); 50/60Hz

DIMENSIONS & WEIGHT : 210(W)x 155(H) x 306(D) mm; Approx. 7kg

ACCESSORIES : User manual x 1, Power cord x 1, Test Lead GTL-104A x 3

===========================================================
