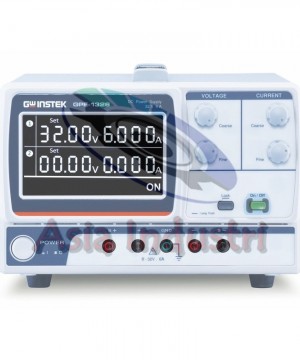

GW Instek GPE-1326 192W Single Channel Linear DC Power Supply

GW Instek GPE-1326 192W Single Channel Linear DC Power Supply

============================================================

Features

·         1/2/3/4 Independent Isolated Output

·         4.3 Inch LCD Display

·         Setting & Read Back Resolution 100mV/10mA (*1)

·         Output On/off

·         Analog Control (Remote I/O) For Output ON/OFF

·         Set View Function For Checking an Original V/I Setting During Output On

·         Key Lock Function

·         Tracking Series And Parallel Operation

·         Smart Cooling Fan Achieving Low Noise

============================================================

Specifications

OUTPUT MODE

-Number of Channel : 1CH

-Voltage : 0 – 32V

-Current : 0 – 6A

ConSTANT VOLTAGE OPERATION

-Line Regulation : ≤0.01% + 3mV

-Load Regulation : ≤0.01% + 3mV (rating current ≤3A); ≤0.02% + 5mV (rating current >3A)

-Ripple & Noise : ≤1mVrms (5Hz – 1MHz)

-Recovery Time : ≤100µS (50% Load change, Minimum load 0.5A)

ConSTANT CURRENT OPERATION

-Line Regulation : ≤0.2% + 3mA

-Load Regulation : ≤0.2% + 3mA

-Ripple & Noise : ≤3mArms

METER

-Voltage Resolution : 100mV

-Current Resolution : 10mA

-Setting Accuracy : Voltage ±(0.1% of reading +30mV); Current ±(0.3% of reading +6mA)

-Readback Accuracy : Voltage ±(0.1% of reading +30mV); Current ±(0.3% of reading +6mA)

INSULATION

-Chassis and Terminal : 20MΩ or above (DC 500V)

-Chassis and AC Cord : 30MΩ or above (DC 500V)

POWER SOURCE : AC100V/120V/220V ±10%; 230V(+10%~-6%); 50/60Hz

DIMENSIONS & WEIGHT : 210(W)x 155(H) x 306(D) mm; Approx. 7kg

ACCESSORIES : User manual x 1, Power cord x 1, Test Lead GTL-104A x 1; GTL-105 x 1

===========================================================
