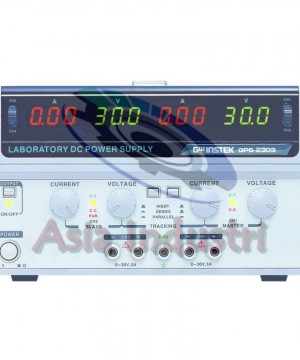

GW Instek GPS-2303 Multiple Output Linear D.C. Power Supply

GW Instek GPS-2303 Multiple Output Linear D.C. Power Supply

============================================================

Features

·         4 Independent Isolated Output

·         Four "3 Digits" LED Displays

·         0.01% Load and Line Regulation

·         Low Ripple and Noise

·         Tracking Operation and Auto Series/Parallel Operation

·         Output ON/OFF Switch

·         Output Voltage and Current Setting When Output Disable

·         Fan Speed Control Circuit to Minimize Fan Noise

·         Over Load and Reverse Polarity Protection

============================================================

Specifications

OUTPUT MODE

-Voltage : 0 – 30V (CH1 & CH2)

-Current : 0 – 3A

-Tracking Series Voltage : 0 – 60V

-Tracking Series Current : 0 – 6A

ConSTANT VOLTAGE OPERATION (CH1 & CH2)

-Line Regulation : ≤0.01% + 3mV

-Load Regulation : ≤0.01% + 3mV (rating current ≤3A); ≤0.02% + 5mV (rating current ≥3A)

-Ripple & Noise : ≤1mVrms , 5Hz - 1MHz

-Recovery Time : ≤100µS (50% Load change, Minimum load 0.5A)

ConSTANT CURRENT OPERATION (CH1, CH2)

-Line Regulation : ≤0.2% + 3mA

-Load Regulation : ≤0.2% + 3mA

-Ripple & Noise : ≤3mArms

TRACKING OPERATION (CH1, CH2)

-Tracking Error : ≤0.5% + 10mV of the CH1

-Series Regulation : ≤300mV

-Load Regulation : ≤0.01% + 3mV

-Ripple & Noise : ≤2mVrms , 5Hz - 1MHz

METER

-Digital : 3 digits 0.5” LEDD dislay

-Accuracy : ±(0.5% rdg + 2 digits)

INSULATION

-Chassis and Terminal : ≥DC 500V/20MΩ

-Chassis and AC Cord : ≥DC 500V/30MΩ

POWER SOURCE : AC 100V/120V/220V(+10%)/230V(+10% - -6%), 50/60Hz

DIMENSIONS & WEIGHT : 255(W) x 145(H) x 265(D) mm, Approx. 7 kg

ACCESSORIES : User manual x 1, Power cord x 1, Test lead GTL-104 x 2 or GTL-204 x 2

===========================================================
