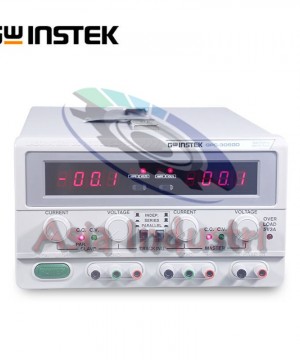

GW Instek GPC-6030D 375W D.C. Power Supply

GW Instek GPC-6030D 375W D.C. Power Supply

============================================================

Features

·         Triple Output

·         Auto Tracking

·         Auto Series and Parallel Operation

·         Constant Voltage and Constant Current Operation

·         Low Ripple and Noise

·         Internal Select for Continuous or Dynamic Load

·         Overload and Reverse Polarity Protection

·         3 1/2 Digits 0.5" LED Display

·         5V, 3A Fixed Output

============================================================

Specifications

DC OUTPUT

-CH1/CH2 : 0 – 60V/0 – 3A

-CH3 : 5V/3A Max

OPERATION MODE

-Indenpendent : Two independent outputs and 5V fixed output

-Series : Output from 0 to rating volts and 0 to rating amperes. Output from 0 to ± rating volts at rating amperes each

-Parallel : Output from 0 to double rating volts at rating amperes. Output from 0 to double rating amperes at rating volts

ConSTANT VOLTAGE OPERATION

-Regulation : Line regulation ≤0.01% + 3mV; Load regulation ≤0.01% + 3mV (rating current ≤3A), ≤0.01% + 5mV(rating current ≤10A), ≤0.02% + 5mV (rating current ≤10A)

-Ripple & Noise : ≤1mVrms 5Hz - 1MHz

-Recovery Time : ≤100µS (50% Load change, Minimum load 0.5A)

ConSTANT CURRENT OPERATION

-Regulation : Line regulation ≤0.2% + 3mA, Load regulation ≤0.2% + 5mA

-Ripple Current : ≤3mArms

5V FIXED OUTPUT

-Regulation : Line regulation ≤5mV, Load regulation ≤10mV

-Ripple & Noise : ≤2mVrms

-Voltage Accuracy : 5V ±0.25V

-Output Current : 3A

TRACKING OPERATION

-Tracking Error : ≤0.5% + 10mV of the master

-Series Regulation : ≤300mV

DISPLAY : 3 ½ digits 0.5” LED display

INSULATION

-Chassis and Terminal : 100MΩ or above (DC 1000V)

-Chassis and AC Cord : 100MΩ or above (DC 1000V)

POWER SOURCE : AC 100V/120V/220V/240V 10%, 50/60Hz

DIMENSIONS & WEIGHT : 255(W) x 145(H) x 420(D)mm

ACCESSORIES : User Manual x 1, Power Cord x 2, (15A/125V 2m for Japan) (10A/250V 1.5 without plug for Japan, North America and Europe only), CD-ROM (Remote Control Software) x 1

===========================================================
