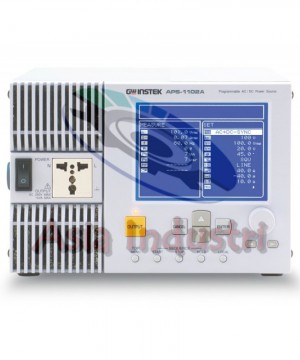

GW Instek APS-1102A 1kVA Programmable AC/DC Power Source

GW Instek APS-1102A 1kVA Programmable AC/DC Power Source

============================================================

Features

·         5.7" Large LCD Display

·         Output Capacity: 1kVA(for AC 200V Input)

·         Output Modes: AC and AC+DC Combined with any of four signal sources

·         Signal Source: Internal(INT),External(EXT),Internal+External(ADD) and Synchronization(SYNC)

·         Arbitrary Waveform Power Output

·         Power Amplifier of External Signal

·         Measurement Functions: Voltage, Current, Power ,Frequency, Power Factor,CF,and Harmonic Current

·         Capacitor Input Load Supported

·         Sequence Function Allows Programming of Output Patterns

·         Limiter Function ( Upper / Lower / Limit Function)

·         30 sets of Save / Recall Memory

·         Output On / Off Switch

·         USB (USBTMC) and RS-232 Standard for Remote Control

·         PC Software (Including Data Logging)

============================================================

Specifications

MAXIMUM OUTPUT CAPACITY

-AC Input (100 – 180V) : 750VA

-AC Input (180 – 250V) : 1000VA

-DC Input (100 – 180V) : 750W

-DC Input (180 – 250V) : 1000W

OUTPUT VOLTAGE

-AC 100V : 0 – 155Vrms

-AC 200V : 0 – 310Vrms

-DC 100V : -220 - +220V

-DC 200V : -44 - +440V

OUTPUT MAX. CURRENT

-AC 100V : 10A

-AC 200V : 5A

-DC 100V : 10A

-DC 200V : 5A

OUTPUT MAXIMUM PEAK CURRENTS

-100V : 40Apk

-200V : 20Apk

FREQUENCY

-Setting Range : 1Hz – 550Hz

-Setting Accuracy : ±0.01% of set (1Hz – 550Hz, 23±5°C)

WAVEFORM

-SINE WAVE, SQUARE WAVE, ARBITRARY WAVE (Up To 16 Types Can Be Saved) : When signal source mode is INT and ADD mode only

-Output Voltage Distortion Rate : 0.5% MA1iI{SOHafEOHa}, iS0‘i‘i3 or higher of the rated output voltage, the maximum current or lower; THD+N

LINE VOLTAGE REGULATION

-0.2% MAXIMUM : Power input voltage iaov,r1 2011;’13 0111 no load ,rated output

LOAD VOLTAGE REGULATION

-0.5% MAXIMUM : At output terminal under np load and rayed resistance load

OUTPUT MODE : AC – INT Mode AC – EXT Mode, AC + DC – INT Mode AC + DC – EXT Mode, AC – ADD Mode AC – SYNC Mode, AC + DC – ADD Mode AC + DC – SYNC Mode

MEMORY : Save/Recall 30 sets

INTERFACE : USB(USBTMC) & RS-232 Standard

POWER SOURCE : AC 100V – 230V ±10%; 50Hz/60Hz ±2Hz (Single Phase)

DIMENSIONS & WEIGHT : 258(W) x 176(H) x 440(D), Approx. 9.7kg

ACCESSORIES : User Manual x 1, Power Cord x 2, (15A/125V 2m for Japan) (10A/250V 1.5 without plug for Japan, North America and Europe only), CD-ROM (Remote Control Software) x 1

===========================================================
