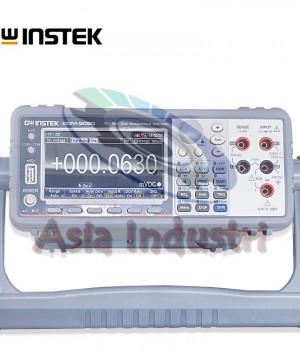

GW Instek GDM-9060 6 ½ (1200000) Digit Dual Measurement Multimeter

GW Instek GDM-9060 6 ½ (1200000) Digit Dual Measurement Multimeter

============================================================

Features

·         6 1/2 Digit Display:1,200,000 Counts

·         4.3 TFT Graphic LCD

·         DCV Basic Accuracy:0.0035%(GDM-9061)/0.0075%(GDM-9060)

·         12 Measurement Functions: DCV, ACV, DCI, ACI, 2-wire and 4-wire Resistance, Frequency, Period, Diode, Continuity, Temperature and Capacitance

·         Sampling Rate up to 10k SPS (GDM-9061)

·         Dual Measurement Function to Providing Two Selected Measurement Simultaneously

·         Offer Graphical Capabilities lncluding Histogram, Bar Meter and Trend

·         Temperature Measurement Support RTD, Thermistor as Well as Thermocouple

·         Standard Interfaces: USB Host/Device, RS-232C, LAN, Digital I/O

============================================================

Specifications

DC VOLTAGE

-Range : 100mV – 1000V

-Resolution : 0.1µV – 1mV

RESISTANCE

-Range : 100Ω - 100MΩ

-Resolution : 100µΩ - 100Ω

DC CURRENT

-Range : 100µA – 10A

-Resolution : 100pA - 10µA

CONTINUITY

-Range : 1000Ω

-Resolution : 0.001Ω

DIODE TEST

-Range : 5V

-Resolution : 1µV

DC RATIO : Accuracy Specification: ± (DC Input accuracy + DC Reference accuracy)

AC VOLTAGE True RMS

-Range : 100mV; 1V to 750V

-Resolution : 1µV; 1µV - 1mV

AC CURRENT (True RMS)

-Range : 100µA – 10A

-Resolution : 100pA – 10µA

CAPACITANCE

-Range : 1nF - 100µF

-Resolution : 0.001nF – 0.1µF

FREQUENCY/PERIOD

-Range : 100mV to 750V

-Frequency : 3Hz – 1MHz

TEMPERATURE : -200°C - 600°C : E, J, T, K, N, R, S, B Type

DISPLAY : 4.3” Color TFT WQVGA (480 x 272)

INTERFACE : RS-232C, USB Host/Device, LAN, Digital I/O

POWER SOURCE : AC 100V/120V/220V/240V, 50Hz/60Hz/400Hz ±10%, Max. 25VA

DIMENSIONS & WEIGHT : 267(W) x 107(H) x 302(D) mm, Approx. 3.5kg

ACCESSORIES : Safety Instructions x 1, Power cord x 1, USB cable GTL-246 x 1, Test lead GTL-217 x 1, CD x 1 (including the complete user manual, upgrade program and PC software, DMM-Viewer2)

===========================================================
