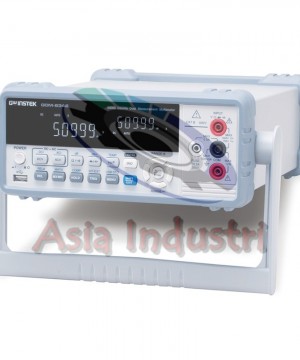

GW Instek GDM-8342 50000 counts Dual Measurement Multimeter with USB Host/Device

GW Instek GDM-8342 50000 counts Dual Measurement Multimeter with USB Host/Device

============================================================

Features

·         50,000 counts, VFD display

·         Dual measurement/Dual display

·         Selectable measurement speeds, the maximum: 40 Readings/s for DCV

·         The basic precision of DC voltage: 0.02%

·         Auto/manual Ranging

·         True RMS (AC，AC+DC) measurements

·         11 different measurement functions

·         Max./Min., REL, MX+B, 1/X, Ref%, Compare, Hold, dB, dBm

·         Standard USB device interface to connect with a computer

·         Temperature measurement function

·         USB storage for Data collection

============================================================

Specifications

DC VOLTAGE

-Range : 500mV – 1000V

-Resolution : 10µV – 100mV

RESISTANCE

-Range : 500Ω - 50MΩ

-Resolution : 10mΩ - 1kΩ

DC CURRENT

-Range : 500µA – 10A

-Resolution : 10nA – 1mA

CONTINUITY

-Range : 500Ω

-Resolution : 100mΩ

DIODE TEST

-Range : 5V

-Resolution : 100µV

CAPACITANCE

-Range : 5nF - 50µF

-Resolution : 0.001nF – 10nF

FREQUENCY : 10Hz – 1MHz

TRUE RMS AC (or AC+DC – AC Coupled) VOLTAGE

-Range : 500mV – 750V

-Resolution : 10µV – 100mV

TRUE RMS AC (or AC+DC – AC Coupled) CURRENT

-Range : 500µA – 10A

-Resolution : 10nA – 1mA

THERMOCOUPLE TEMPERATURE : -200°C - 300°C (J/T/K)

INTERFACE : USB device, USB Host

DISPLAY : VFD, Two Colors Display

POWER SOURCE : AC 100V/120V/220V/240V ±10%, 50-60Hz, Max. 15VA

DIMENSIONS & WEIGHT : 265(W) x 107(H) x 302(D)mm, Approx. 2.9kg

ACCESSORIES : Safety Instruction Sheet x 1, Power cord x 1, Test lead GTL-207A x 1, CD x 1 (including complete user manual, USB driver and PC software)

===========================================================
