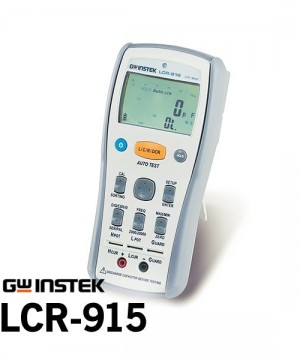

GW Instek LCR-915 10kHz Hand-held LCR Meter

GW Instek LCR-915 10kHz Hand-held LCR Meter

============================================================

Features

·         20,000/2,000 Counts Dual Display

·         Test Frequency : 100/120Hz/1/10/100kHz

·         Auto LCR Mode for DUT Measurements

·         0.2% Basic Accuracy

·         Measurement Parameters : L,C,R,D,Q,ESR,θ,DCR

·         Parallel/Series Testing Mode

·         Sorting Mode for Quality Control

·         2Wire or 5Wire Measurement Available

·         Data Hold and Zero Mode Supported

·         Max/Min

·         Auto Range, Auto Backlit

·         Low Battery Indication

·         Auto Power off

·         Data Collection/AC power operation

============================================================

Specifications

TEST FREQUENCY : 100Hz/120Hz/1kHz/10kHz Selectable

INDUCTANCE

-Range : 20µH – 20H

-Accuracy : +(0.2% rdg + 2 digits)

CAPACITANCE

-Range : 20pF – 20mF

-Accuracy : +(0.2% rdg + 2 digits)

RESISTANCE

-Range : 20Ω - 200MΩ

-Accuracy : +(0.2% rdg + 2 digits)

DC RESISTANCE

-Range : 200Ω - 200MΩ

-Accuracy : +(0.2% rdg + 2 digits)

QUALITY FACTOR (Q)

-Range : 0.000 – 999

-Accuracy : 2 x (main parameter accuracy)

DISSIPATION FACTOR (D)

-Range : 0.000 – 999

-Accuracy : 2 x (main parameter accuracy)

PHASE ANGLE (Ø)

-Range : -90° - 90°

-Accuracy : +(0.2% rdg+ 5 digits)

MEASUREMENT CIRCUIT : Parallel or Series selectable

AUTO LCR MODE : Automatically identifies and measures the DUT when the meter is switch on

SORTING MODE : +0.1%, +0.2%, +0.25%, +0.5%, +1.0%, +2.0%, +5.0%, +10.0%, +20.0%, +80%/-20% Selectable

OTHER FUNCTIONS : Auto range, Auto backlit, Max, Min, Data hold, Zero, Auto power off, 46 segments analogue bar

DISPLAY : LCD mono display

INTERFACE : USB

POWER SOURCE : AA Battery 1.5V x 4 or DC 5V(through AC adapter or USB cable)

DIMENSIONS & WEIGHT : 95(W) × 207(H) × 52(D) mm, Approx. 630g

ACCESSORIES : User manual x1, Battery x1, Shorting Cube, Alligator Clip Set, Magnetic Hang Kit

===========================================================
