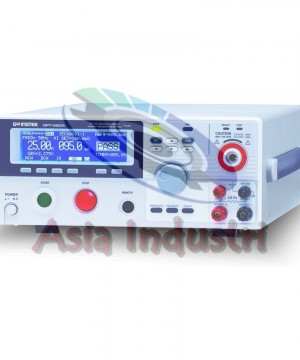

GW Instek GPT-9803 200VA AC/DC Withstanding Voltage/Insulation Resistance Tester

GW Instek GPT-9803 200VA AC/DC Withstanding Voltage/Insulation Resistance Tester

============================================================

Features

·         200VA AC Test Capacity

·         240x64 Ice Blue Dot matrix LCD

·         Manual/Auto Mode

·         Function Key for quick selecting

·         High intensity flash for Caution & Status indication

·         Safety INTERLOCK function

·         Zero Crossing Turn-on Operation

·         Controllable Ramp-up Time

·         RMS Current Measurement

·         High resolution: 1uA for measuring current, 2V for setting voltage

·         PWM amplifier to enhance the power efficiency and reliable testing

·         Max. 100 memory block for test condition (step) setting. And each step can be named individually.

·         Remote terminal on the front panel for “start” and “stop” control

·         Interface : RS-232C, USB device, Signal I/O

============================================================

Specifications

AC WITHSTANDING

-Output-Voltage Range : 0.050kV -  5.000kV AC

-Output-Voltage Resolution : 2V/step

-Output-Voltage Accuracy : ±(1% of setting +5V) [no load]

-Maximum Rated Load : 200VA (5kV/40mA)

-Maximum Rated Current : 40mA (0.5kV <V ≤5kV); 10mA (0.05kV ≤V ≤0.5kV)

DC WITHSTANDING

-Output-Voltage Range : 0.050kV - 6.000kV DC

-Output-Voltage Resolution : 2V/step

-Output-Voltage Accuracy : ± (1% of setting +5V) [no load]

-Maximum Rated Load : 50W (5kV/10mA)

-Maximum Rated Current : 10mA (0.5kV <V ≤6kV); 2mA (0.05kV ≤V ≤0.5kV)

INSULATION RESISTANCE

-Output-Voltage : 50V - 1000VDC

-Output-Voltage Resolution : 50V/step

-Output-Voltage Accuracy : ±(1% of setting +5V) [no load]

-Resistance Measurement Range : 1MΩ - 9500MΩ

MEMORY

-Single Step Memory : MANU : 100 blocks

-Automatic Testing Memory : AUTO : 100 blocks, menu per auto : 16

INTERFACE : RS232, USB device, SIGNAL I/O, Remote Terminal (Front)

DISPLAY : 240 x 64 dot matrix LED back light LCD

POWER SOURCE : AC100V/120V/220V/230V ±10%, 50/60Hz, 500VA max.

DIMENSIONS & WEIGHT : 330(W) x 148(H) x 452(D) mm, approx. 19kg(Max)

ACCESSORIES : Quick Start Guide x1, CD x1(completed user manual), Power cord x1, Interlock key x1, Remote terminal Cable GHT-119 x1, Test lead GHT-114 x1 for GPT-9803/9802/9801

===========================================================
