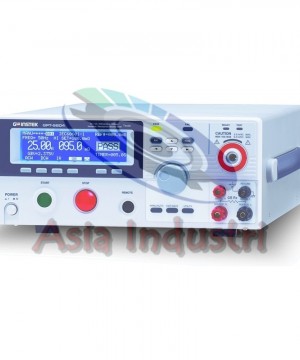

GW Instek GPT-9801 200V AC Withstanding Voltage Tester

GW Instek GPT-9801 200V AC Withstanding Voltage Tester

============================================================

Features

·         200VA AC Test Capacity

·         240x64 Ice Blue Dot matrix LCD

·         Manual/Auto Mode

·         Function Key for quick selecting

·         High intensity flash for Caution & Status indication

·         Safety INTERLOCK function

·         Zero Crossing Turn-on Operation

·         Controllable Ramp-up Time

·         RMS Current Measurement

·         High resolution: 1uA for measuring current, 2V for setting voltage

·         PWM amplifier to enhance the power efficiency and reliable testing

·         Max. 100 memory block for test condition (step) setting. And each step can be named individually.

·         Remote terminal on the front panel for “start” and “stop” control

·         Interface : RS-232C, USB device, Signal I/O

============================================================

Specifications

AC WITHSTANDING

-Output-Voltage Range : 0.050kV -  5.000kV AC

-Output-Voltage Resolution : 2V/step

-Output-Voltage Accuracy : ±(1% of setting +5V) [no load]

-Maximum Rated Load : 200VA (5kV/40mA)

-Maximum Rated Current : 40mA (0.5kV < V ≦ 5kV); 10mA (0.05kV ≦ V≦ 0.5kV)

-Output-Voltage Waveform : Sine wave

-Output-Voltage Frequency : 50Hz/60Hz selectable

-Voltage regulation : ±(1% of reading +5V) [full load → no load]

-Voltmeter Accuracy : ±(1% of reading+ 5V)

-Current Measurement Range : 0.001mA - 040.0mA

-Current Best Resolution : 0.001mA/0.01mA/0.1mA

-AC Current Measurement Accuracy : ±(1.5% of reading +30 counts) when HISET < 1.11mA; ±(1.5% of reading +3 counts) when HISET ≧ 1.11mA

-Window Comparator Method : Yes

-ARC Detect : Yes

-RAMP (Ramp-Up Time) : 0.1 - 999.9s

-TIMER (Test Time)* : OFF**, 0.5s - 999.9s

-GND : ON/OFF

MEMORY

-Single Step Memory : MANU : 100 blocks

-Automatic Testing Memory : AUTO : 100 blocks, menu per auto : 16

INTERFACE : RS232, USB device, SIGNAL I/O, Remote Terminal (Front)

DISPLAY : 240 x 64 dot matrix LED back light LCD

POWER SOURCE : AC100V/120V/220V/230V ±10%, 50/60Hz, 500VA max.

DIMENSIONS & WEIGHT : 330(W) x 148(H) x 452(D) mm, approx. 19kg(Max)

ACCESSORIES : Quick Start Guide x1, CD x1(completed user manual), Power cord x1, Interlock key x1, Remote terminal Cable GHT-119 x1, Test lead GHT-114 x1 for GPT-9803/9802/9801

===========================================================
