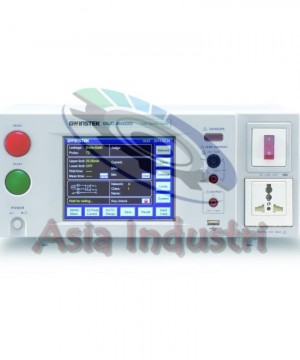

GW Instek GLC-9000 Leakage Current Tester

GW Instek GLC-9000 Leakage Current Tester

============================================================

Features

·         Touch Panel with Color LCD Display

·         9 Different Measurement Network to Simulate the Resistance of Human Body

·         8 Different Types of Leakage current

·         Various Leakage Current Measuring Mode：DC/AC/AC+DC/AC Peak

·         Upper & Lower Limitation for PASS/FAIL Judgment

·         Meter Mode with SELV/CONV Function

·         50 Preset Test Conditions Conform to IEC 60990; 30 Sets Memories for Customer Defined

·         Various Standard Interfaces：RS232/GPIB/USB Host & Device/EXT I/O

============================================================

Specifications

DC RANGE & RESOLUTION

-25.00mA : 5.00mA – 25.00mA | 10µA

-5.000mA : 0.500mA – 5.000mA | 1µA

-500.0µA : 50.00µA – 500.0µA | 0.1µA

-50.00µA : 4.00µA – 50.00µA | 0.01µA

AC or AC + DC RANGE & RESOLUTION

-25.00mA : 5.00mA – 25.00mA | 10µA

-5.000mA : 0.500mA – 5.000mA | 1µA

-500.0µA : 50.00µA – 500.0µA | 0.1µA

-50.00µA : 4.00µA – 50.00µA | 0.01µA

AC PEAK RANGE & RESOLUTION

-75.0mA : 10.0mA – 25.0mA | 100µA

-10.00mA : 1.00mA – 10.00mA | 10µA

-1.000mA : 500µA – 1.000mA | 1µA

-500.0µA : 40.0µA – 500.0µA | 0.1µA

EUT (V/I CHECK)

-Voltage : 85V – 300V

-Current : 0.5 – 10A

METER MODE

-AC/DC : 10.0 – 300.0V

-AC+DC : 10.0 – 300.0V

-AC Peak : 15.0 – 430.0V

INTERFACE : RS-232, GPIB, USB Host & Device, EXT I/O

POWER SOURCE : For GLC-9000 : AC 100V/120V/220V/230V 10%, 50/60Hz; For EUT : AC 85V ~ 250V, 50/60Hz(264V Max.)

DIMENSIONS & WEIGHT : 330 (W) x 150 (H) x 350 (D) mm; Approx. 5kg

ACCESSORIES : User manual x 1, Power cord x 2, Test lead(GTL-207) x 2, CD x1(Complete user manual), Alligator clips(GLC-01) x 4(Red x 2/Black x 2), Foil probe(GLC-02) x

===========================================================
