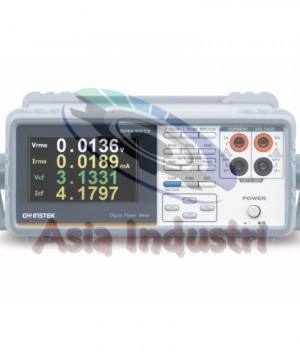

GW Instek GPM-8213 Digital Power Meter

GW Instek GPM-8213 Digital Power Meter

============================================================

Features

·         4” TFT LCD

·         Two data display modes

·         Standard : two major measurement items + six secondary measurement items

·         Simple : displaying test data of four different measurement items

·         Listed as an accepted device for SPEC Power® testing

·         Met the requirement of IEC 62301 power measurement

·         Voltage/ current test frequency bandwidth : DC~6kHz

·         Watt resolution : 1mW

·         Lowest current range : 5mA, resolution : 0.1uA

·         Current/voltage measurements reach CF=3 for distorted wave and CF=6 for half range

·         W-h (power vs time)/A-h (current vs time) integration function

·         Total harmonic distortion measurement

·         Front panel test terminal

·         Standard interface : RS-232C, USB device, LAN

============================================================

Specifications

INPUT

-Voltage : 600V rms

-Current : 20A rms

-Impedance (50/60Hz) : Voltage : 2.4MΩ; Current : 5mA – 200mA : 500mΩ; 0.5A – 20A : 5mΩ

-Max. Voltage : 700V rms

-Max. Current : 25A rms

-Max. Common  Mode Voltage : 300V

VOLTAGE

-CF=3 : 15V, 30V, 60V, 150V, 300V, 600V

-CF=6 : 7.5V, 15V, 30V, 75V, 150V, 300V

-Accuracy : ±(0.2% of reading+0.2% of range)

CURRENT

-CF=3 : 5mA, 10mA, 20mA, 50mA, 100mA, 200mA, 500mA, 1A, 2A, 5A, 10A, 20A

-CF=6 : 2.5mA, 5mA, 10mA, 25mA, 50mA, 100mA, 250mA, 0.5A, 1A, 2.5A, 5A, 10A

-Accuracy : ±(0.2% of reading+0.2% of range)

FREQUENCY

-Filter (ON) : 30.000Hz – 499.99Hz

-Filter (OFF) : 30.000Hz – 9.9999kHz

-Accuracy : ±0.06% of reading

DISPLAY : 4” TFT LCD

INTERFACE : RS-232C, USB device, LAN

POWER SOURCE : AC 100-240V, 50-60Hz, Max. 25VA

DIMENSIONS & WEIGHT : 270(W) x 110(H) x 350(D) mm, Approx. 2.9kg

ACCESSORIES : Safety Sheet x 1, Power Cord x 1, Test Lead GTL-209 x 2, CD x 1 (User manual/ USB driver)

===========================================================
