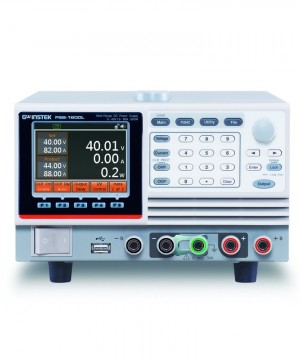

GW Instek PSB-1800M 160V/20A/800W Programmable Multi-Range D.C. Power Supply

GW Instek PSB-1800M 160V/20A/800W Programmable Multi-Range D.C. Power Supply

============================================================

Features

·         LCD display and menu-typed functionality selection

·         Support front panel output terminals (Max.30A) and rear panel output terminals (Rating current output)

·         Bleeder circuit control

·         I/V Control function

·         Sequence function

·         Power on Configuration

·         Internal Sense Control( Disable/ front panel/ rear panel)

·         Voltage trigger function

·         Output delay function

·         OCP Control function

·         Interface: USB Host

============================================================

Specifications

OUTPUT RATING

-Voltage : 160V

-Current : 20A

-Power : 800W

REGULATION (CV)

-Load : 85mV

-Line : 83mV

REGULATION (CC)

-Load : 25mA

-Line : 25mA

RIPPLE AND NOISE (Noise Bandwidth 20MHz; Ripple Bandwidth = 1MHz)

-CV p-p : 80

-CV rms : 15

-CC rms : 40

PROGRAMMING & MEASUREMENT ACCURACY

-Voltage : 50mV

-Current : 20mA

RESPonSE TIME

-Raise Time : 100ms

-Fall Time (Full load) : 150ms

-Fall Time (No load) : 1200ms

-Load Transient Recover Time (Load change from 50-100%) : 1ms

PROGRAMMING & MEASUREMENT RESOLUTION

-Voltage : 3mV

-Current : 1mA

SERIES & PARALLEL CAPABILITY

-Parallel Operation : Up to 4 units including the master unit

-Series Operation : Up to 2 units including the master unit

INTERFACE : USB, LAN

POWER SOURCE : 100VAC to 240VAC, 50Hz to 60Hz, single phase

DIMENSIONS & WEIGHT : 214(W) x 124(H) x 350(D)mm, Approx. 6.8kg

ACCESSORIES : CD ROM (User & Programming Manual) x 1, Power cord for UL/CSA or PSE (Region Dependent), Output terminal cover, Type A-B USB cable, Analog connector plug set, Chassis connection wire

===========================================================
