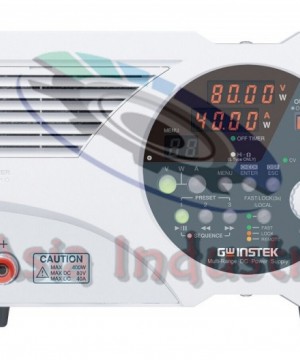

GW Instek PSB-2400L 0-80V/0-40A/400W Multi-Range DC Power Supply

GW Instek PSB-2400L 0-80V/0-40A/400W Multi-Range DC Power Supply

============================================================

Features

·         Output Voltage Rating : 80V/800V

·         Output Power Rating : 400W-800W

·         Constant Power Output for Multi-Range(V&I) Operation

·         Series and Parallel Operation(2 Units in Series or 4 Units in Parallel Maximum)

·         Sequence function edited by PC will be controlled through power supply optional interface

·         Standard Interafce: RS-232C / USB / Analog Control Interface

============================================================

Specifications

OUTPUT RATING

-Voltage : 80V

-Current : 40A

-Power : 400W

REGULATION (CV)

-Load : 0.01% ± 3mV of rated voltage

-Line : 0.01% ± 2mV of rated voltage

REGULATION (CC)

-Load : 0.02% ± 3mA of rated voltage

-Line : 0.01% ± 2mA of rated voltage

RIPPLE AND NOISE

-CV p-p : 90mV

-CV rms : 4mV

-CC rms : 30mA

PROGRAMMING ACCURACY

-Voltage : 0.1% setting ±2digits

-Current : 0.2% setting ±2digits

-Power : ± 10W

READ BACK ACCURACY

-Voltage : 0.2% reading ±2digits

-Current : 0.3% reading ±2digits

-Power : 0.5% reading ±5digits

RESPonSE TIME

-Raise Time (Full load/No load) : 50ms

-Fall Time (Full load) : 100ms

-Fall Time (No load) : 500ms

-Load Transient Recover Time (Load change from 50-100%) : 1ms

PROGRAMMING & MEASUREMENT RESOLUTION

-Voltage : 10mV

-Current : 10mA

-Power : 10W

SERIES & PARALLEL CAPABILITY

-Channel Number : 1

-Series Operation : Up to 2 Units

-Parallel Operation : Up to 4 Units

INTERFACE : USB, RS-232C

POWER SOURCE : 100VAC to 240VAC, 50Hz to 60Hz, single phase

DIMENSIONS & WEIGHT : 210(W) x 124(H) x 290(D)mm, Approx. 8.7kg

ACCESSORIES : User Manual (CD) x 1, AC Power Cord x 1, External Control Connector (26pin), Screws for output terminals on rear panel, Protection covers for output terminals on rear panel, Protection caps for output terminals on the front panel, GND Cable, USB Cable

===========================================================
