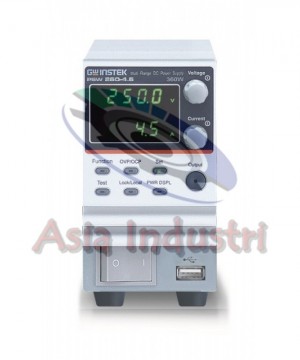

GW Instek PSW 250-4.5 (0-250V/0-4.5A/360W) Multi-Range DC Power Supply

GW Instek PSW 250-4.5 (0-250V/0-4.5A/360W) Multi-Range DC Power Supply

============================================================

Features

·         Voltage Rating: 30V/40V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W

·         Multi-range Voltage & Current Combinations in One Power Supply

·         CV/CC Priority; Particularly Suitable for the Battery and LED Industry

·         Adjustable Slew Rate

·         Series Operation (2 units in Series) for (30V/40V/80V/160V)

·         Parallel Operation (to 3 units Parallel) for (30V/40V/80V/160V/250V/800V)

·         High Efficiency and High Power Density

·         1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W, 720W, 1080W

·         Standard Interface: LAN,USB,Analog Control Interface

·         LabView Driver

============================================================

Specifications

OUTPUT RATING

-Voltage : 0V – 250V

-Current : 0 – 4.5A

-Power : 360W

REGULATION (CV)

-Load : 130mV

-Line : 128mV

REGULATION (CC)

-Load : 9.5mA

-Line : 9.5mA

RIPPLE & NOISE (Noise Bandwidth=20MHz; Ripple Bandwidth=1MHz)

-CV p-p : 80mV

-CV rms : 15mV

-CC rms : 10mA

PROGRAMMING & MEASUREMENT ACCURACY

-Voltage : 0.1% + 100mV

-Current : 0.1% + 5mA

PROGRAMMING & MEASUREMENT RESOLUTION (By PC Remote Control Mode)

-Voltage : 5mV

-Current : 1mA

INTERFACE : LAN, USB, Analog Control

POWER SOURCE : 85VAC – 265VAC, 47 – 63Hz, single phase

DIMENSIONS & WEIGHT : 214 (W) x 124 (H) x 350 (D) mm, Approx. 7.5kg

ACCESSORIES : CD-ROM x 1, (GTL-123 Test Lead x 1 (for PSW 30V/40V/80V/160V), Power Cord x 1 Programming Manual, User Manual), GTL-240 USB Cable ”L“ Type x 1, PSW-004 Basic Accessories Kit x 1 (for PSW 30V/40V/80V/160V), Includes : M4 Terminal screws and washers x 2, Air Filter x 1, Analog control protection dummy x 1, Analog control lock lever x 1, M8 terminal bolts, nuts and washers x 2

===========================================================
