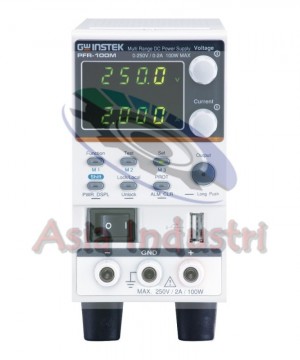

GW Instek PFR-100M Fanless Multi-Range D.C. Power Supply

GW Instek PFR-100M Fanless Multi-Range D.C. Power Supply

============================================================

Features

·         Constant Power Output for 5 Times Multi-range(V&I) Operation

·         Natural Convection Cooling Design (Fanless Structure)

·         Preset Memory Function

·         Output ON/OFF Delay Function

·         CV, CC Priority Mode

·         Adjustable Slew Rate For Voltage and Current

·         Bleeder Circuit Control

·         Protections: OVP, OCP, AC FAIL and OTP

·         Support Front and Rear Panel Output

·         Built-in USB and RS-232/485 Interface Optional LAN+GPIB

·         Web Server Monitoring and Control

·         External Analog Control and Monitor Function

·         Remote Sensing Function

============================================================

Specifications

OUTPUT

*Rated Output Voltage : 250V

*Rated Output Current : 2A

*Rated Output Power : 100W

REGULATION (CV)

*Load Regulation : 33mV

*Line Regulation : 3mV

REGULATION (CC)

*Load Regulation : 3.2MA

*Line Regulation : 1.2mA

PROGRAMMING RESOLUTION

*Voltage : 10mV

*Current : 0.1mA

MEASUREMENT RESOLUTION

*Voltage : 10mV

*Current : 0.1mA

PROTECTION FUNCTION

*Over Voltage Protection : 5 – 275V

*Over Current Protection : 0.2 – 2.2A

*Under Voltage Limit : 0 – 262.5V

FRONT PANEL DISPLAY ACCURACY, 4 DIGITS

*Voltage : 200mV

*Current : 2mA

ANALOG ConTROL : Yes

INTERFACE : USB, RS-232/RS-485

AC INPUT: 85 – 165VAC, 47 – 63Hz, Single Phase

DIMENSIONS & WEIGHT : 70 (W) x 124 (H) x 300 (D) mm, Approx. 2.5kg

ACCESSORIES : CD(User Manual, Programming manual) x 1, Power cord, GTL-134 test lead, Accessory Packages, GTL-105A test lead (for PFR-100L only)

===========================================================
