Fluke 1735 Three-Phase Power Quality Logger

Fluke 1735 Three-Phase Power Quality Logger

============================================================

Features

·         Record power and associated parameters for up to 45 days

·         Monitor maximum power demand over user-defined averaging periods

·         Prove the benefit of efficiency improvements with energy consumption tests

·         Measure harmonic distortion caused by electronic loads

·         Improve reliability by capturing voltage dips and swells from load switching

·         Easily confirm instrument setup with color display of waveforms and trends

·         Measure all three phases and neutral with included 4 flexible current probes

·         View graphs and generate reports with included Power Log software

·         Compact, rugged design with IP65 case, 600 V CAT III

============================================================

Specifications

V-RMS WYE Measurement : 57 V/66 V/110 V/120 V/127 V/220 V/230 V/240 V/260 V/277 V/347 V/380 V/400 V/417 V/480 V AC

V-RMS Delta Measurement : 100 V/115 V/190 V/208 V/220 V/380 V/400 V/415 V/450 V/480 V/600 V/660 V/690 V/720 V/830 V AC

A-RMS Measurement

*Flexi Set I Range : 15 A/150 A/3000 A rms (at sine)

*Current Clamp Range : 1 A/10 A

*Resolution : 0.01 A

*Range : 150 A/3000 A and 1 A/10 A

PF (Power Factor) : 0.000 to 1.000

Frequency Measurement : 46 Hz to 54 Hz and 56 Hz to 64 Hz

Harmonic : To 50th harmonic (< 50% of nom)

Display : 320 x 240 VGA Graphic Color

Memory : 4MB Flash memory

Interface : RS-232

Sample Rate : 10.24 kHz

Line Frequency : 50 Hz or 60 Hz, user-selectable, with automatic synchronization

Power Supply : NiMH battery-pack, with ac adapter (15 V to 20 V / 0.8 A)

Dimensions : 240 x 180 x 110 mm

Weight : 1.7 kg, including battery

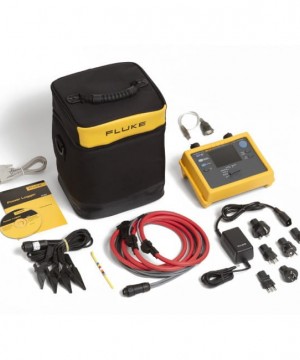

Includes : Includes soft carrying case, 4 flexible current probes (15 A/150 A/3000 A), Power Log software, Voltage leads and clips, Color localization set, PC interface cable, International ac adapter (115/230 V, 50/60 Hz), Printed English manual, Multi-language manual CD

===========================================================
