Fluke 1623-2 GEO Earth Ground Tester Kit

Fluke 1623-2 GEO Earth Ground Tester Kit

============================================================

Features

·         3- and 4-Pole Fall-of-Potential (using stakes)

·         4-Pole Soil Resistivity Testing (using stakes)

·         Selective Testing (using 1 clamp and stakes)

·         Stakeless Testing (using 2 clamps only)

============================================================

Specifications

Display : 1999 digit LCD Display with special symbols, digit height 25 mm, fluorescent backlight

User interface : Instant measurement through TURN and START one button concept. The only operating elements are rotary switch and START button

Robust, water and dust resistant : Instrument is designed for tough environmental conditions (rubber protective cover, IP56)

Memory : Internal memory storage up to 1500 records accessible via USB port

RA 3-Pole & 4-Pole Ground Resistance Measurement (IEC 1557-5)

*Resolution : 0.001 Ω to 10 Ω

*Measuring range : 0.020 Ω to 19.99 kΩ

Measuring Principle Current/Voltage Measurement

*Measuring voltage : Vm = 48 V AC

*Short-circuit current : > 50 mA

*Measure frequency : 128 Hz

*Probe resistance (RS) : Max 100 kΩ

RA 3-Pole & 4-Pole Selective Ground Resistance Measurement with Current Clamp (RA with Clamp)

*Resolution : 0.001 Ω to 10 Ω

*Measuring range : 0.020 Ω to 19.99 kΩ

Measuring Principle Current/Voltage Measurement (with External Current Clamp)

*Measuring voltage : Vm = 48 V AC

*Short-circuit current : > 50 mA

*Measure frequency : 128 Hz

*Probe resistance (RS) : Max 100 kΩ

Stakeless Ground Loop Measurement (2 Clamps )

*Resolution : 0.001 Ω to 10 Ω

*Measuring range : 0.020 Ω to 19.99 kΩ

Dimensions (W x H x D) : 250 x 133 x 187 mm

Weight : 7.6 kg incl. accessories and batteries in carrying case

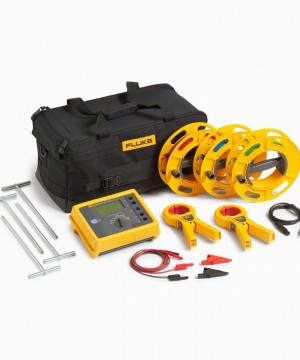

Includes : GEO Earth Ground Tester, User’s Manual, Batteries, Quick Reference Guide, USB Cable, 2 Clamps, C1620 Professional Carrying Case, 4 Earth Ground Stakes, 3 Cable Reels

===========================================================
