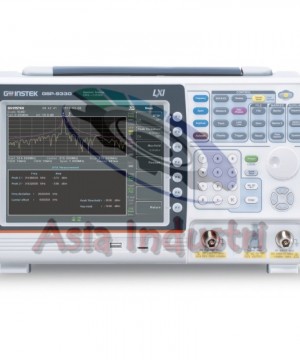

GW Instek GSP-9330 3.25GHz Spectrum Analyzer

GW Instek GSP-9330 3.25GHz Spectrum Analyzer

============================================================

Features

·         Frequency Range: 9kHz - 3.25GHz

·         0.025ppm Frequency Stability and 1ppm aging Rate

·         RBW: 1Hz - 1MHz (3dB), 6dB EMI Filter: 200Hz, 9kHz, 120kHz, 1MHz

·         Fastest sweep time: 204us

·         Sensitivity: -149 dBm/Hz (@PreAmp on)

·         Built-in Preamplifier, 50dB Attenuator, and Sequence Function

·         Built-in EMC pretest function, Quasi-Peak/Average EMI detect mode

·         Built-in 2FSK Analysis, AM/FM/ASK/FSK Demodulation & Analysis

·         Built-in P1dB point, Harmonic, CHPW, OCBW, ACPR, SEM, TOI, CNR, CTB, CSO, N-dB bandwidth, Noise Marker, Frequency Counter, TDP, Gated Sweep

·         Built-in Spectrogram, Topographic and Split-Window Display Modes

·         Remote control EMI measurement software: SpectrumShot

·         Remote Control Interface: LAN, USB, RS-232

============================================================

Specifications

FREQUENCY

*Range : 9kHz – 3.25GHz

*Resolution : 1Hz

FREQUENCY SPAN

*Range : 0Hz (zero span), 100Hz – 3.25GHz

*Resolution : 1Hz

AMPLITUDE

*Range : 100kHz – 1MHz, 1MHz – 10MHz, 10MHz – 3.25GHz

ATTENUATOR

*Range : 0 – 50dB, in 1dB steps

SWEEP

*Range : 204µS – 1000S, 50µS – 1000S

*Sweep Mode : Continuous; Single

RF PREAMPLIFIER

*Range : 1MHz – 3.25GHz

*Gain : 18dB

EARPHONE OUTPUT : 3.5mm stereo jack, wired for mono operation

VIDEO OUTPUT : DVI-I (integrated analog and digital), Single link. Compatible with VGA or HDMI standard through adapter

RS-232C INTERFACE : D-sub 9-pin female

AC POWER INPUT : AC 100V - 240V, 50/60 Hz, auto range selection

DIMENSION & WEIGHT : 350(W) x 210(H) x 100(D) mm, Approx. 4.5kg

ACCESSORIES : Power Cord, Certificate of Calibration, CD-ROM (with Quick Start Guide, User Manual, Programming Manual, SpectrumShot Software, SpectrumShot Guide & IVI Driver)

===========================================================
