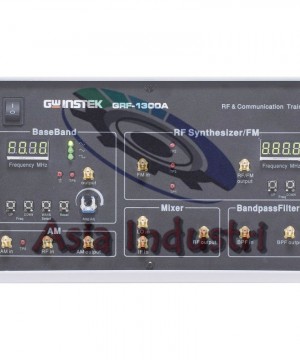

GW Instek GRF-1300A RF and Communication Trainer

GW Instek GRF-1300A RF and Communication Trainer

============================================================

Features

·         baseband Signal: Sine, Triangle, Square wave

·         Frequency Range: 0.1 - 3MHz

·         RF Frequency: 870 ~ 920MHz

·         AM & FM Modulation

·         Mixer & 2.4GHz Bandpass Filter

·         5 programmable On/Off Switches and 5 Test Points to Simulate 8 Failure Conditions for Trouble-Shooting Study

·         USB Interface to Provide Remote Control

============================================================

Specifications

baseBAND

* Waveforms : Sine, Square, Triangle

*Frequency Range : 0.1 - 3MHz, Step : 10kHz

*Amplitude : ≥1.5Vpp; ≥0.75Vpp into 50 Ohm

*Harmonic Distortion : ≤-30dBc

RF/FM ANALYSIS

*Frequency Accuracy : ±0.15MHz

*Adjustable Range : ≥45MHz (870M - 920MHz) , Step : 1MHz

*Power Range : ≥-15dBm

FM

*Max Frequency Deviation : >3MHz

AM

*Peak Difference : ≥-18dBm

MIXER

*LO + IF : ≥-35dBm

*LO – IF : ≥-35dBm

MIXER + MODULATION : ≥-60dBm

BANDPASS FILTER

*Frequency Centre :  2.4GHz

*Bandwidth :  ±20MHz

INTERFACE : USB Type B

DIMENSIONS & WEIGHT : 165(W) x 155(H) x 90(D)mm, Approx. 1.2kg

===========================================================
