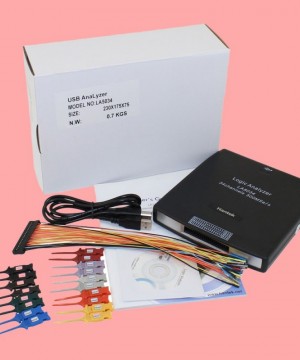

Hantek LA5034 34Channels 500Msa/s Logic Analyzer

Hantek LA5034 34Channels 500Msa/s Logic Analyzer

============================================================

Up to 34 data input channels,High speed operation 500MHz,Continuously variable pre/post trigger position,Advanced Multi-Level Triggering, 6V to -6V Adjustable Logic Threshold, CAN, I2C, SPI and RS232 Interpreters, Built-in 250MHz Frequency Counter

Features

·         Up to 34 data input channels.

·         High speed operation, 500MHz Timing-Mode (Internal Clock), 200MHz State-Mode (External Clock)

·         Continuosly variable pre/post trigger position, Advance Multi-Level Triggering

·         +6V to -6V Adjustable Logic Threshold

·         CAN, I2C, SPI and RS232 Interpreters

·         Built-in 250MHz Frequency Counter

·         USB 1.1 and 2.0 Compatible

·         Support 32bit system

============================================================

Specifications

Channel : 34

Input Impedance : 200K (C=10p)

Input Voltage Range : -60V to 60V

Voltage Threshold Range : -6V to 6V

Max. Sample Rate : 500 MHz

Max. Input Signal Bandwidth : 150 MHz

Min Time Resolution : 2ns

Sample Depth : 2KSample

Memory Depth : 68Kbits

Compatible Input : TTL,LVTTL,CMOS,LVCOMS,ECL,PECL,EIA

Electrostatic Protected Area : 15KV

Interface : USB Port

Voltage Range : 4.5V to 5.5V

Power : Max. 3.5W

Temperature Range : Operation: -10°C to 60°C; Storage: -40°C to 60°C

Operating System : WinXP/2000/Win7

Size & Weight : 150(D) x 25(H) x 165(W) mm, about 390g

===========================================================
