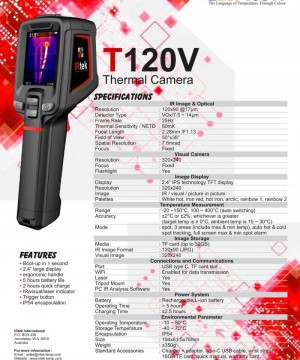

IRtek T120V Thermal Camera

IRtek T120V Thermal Camera

============================================================

Features

·         Boot-up in 1 second

·         2.4” large display

·         Ergonomic handle

·         5 hours battery life

·         2 hours quick charge

·         IR/Visual/Laser indicator

·         Trigger button

·         IP54 encapsulation

============================================================

Specifications

IR IMAGE & OPTICAL

Resolution : 120 x 90 @ 17µm

Detector Type : Vox/7.5 to 14µm

frame Rate : 25Hz

Thermal Sensitivity / NFTD : 60mK

Focal Length : 2.28mm/F1.13

Field of View : 50° x 38°

Spatial Resolution : 7.6mrad

Focus : Fixed

VISUAL CAMERA

Resolution : 320 x 240

Focus : Fixed

Flashlight : Yes

IMAGE DISPLAY

Display : 2.4” IPS tecehnology TFT display

Resolution : 320 x 240

Image : IR/Visual/Picture in Picture

Palettes : White hot, Iron red, Hot iron, Arctic, Rainbow 1, Rainbow 2

TEMPERATURE MEASUREMENT

Range : -20°C to 150°C, 100°C to 400°C (auto switching)

Accuracy : ±2°C or ±2%, whichever is greater (target temp is ≥ 0°C, ambient temp is 15°C to 30°C)

Mode : spot, 3 areas (include max & min temp.), auto hot & cold spot tracking, full screen max & min spot alarm

IMAGE STORAGE

Media : TF card (up to 32GB)

IR Image Format : 120 x 90 (JPG)

Visual Image : 320 x 240

ConNECTIONS and COMMUNICATIONS

Port : USB type C, TF card slot

WiFi : Enable for data transmission

Laser : Yes

Tripod Mount : Yes

PC IR Analysis Software : Yes

POWER SYSTEM

Battery : Rechargeable Li-ion battery

Operating Time : > 5 hours

Charging Time : ≤ 2.5 hours

ENVIRonMENTAL PARAMETER

Operating Temperature : -10°C to 50°C

Storage Temperature : -40°C to 70°C

Encapsulation : IP54

Size : 194 x 61.5 x 76 mm

Weight : ±350g

Standard Accessories : Charger + Adapter, Type-C USB Cable, Wrist Strap, 16GB TF Card, Quick Manual, Warranty Card, Certficate of Product Conformance

===========================================================
