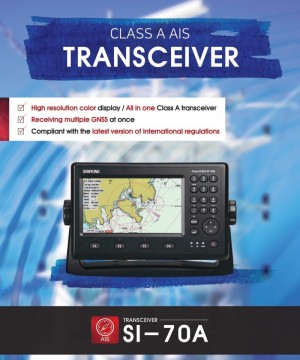

SAMYUNG SI-70A Class A AIS Transceiver

SAMYUNG SI-70A Class A AIS Transceiver

============================================================

Features

• Compliant with IEC61993-2 Ed.2.0 / IEC61162-1 Ed.5.0 / IEC62288 Ed.2.0 / ITU-RM.1371-5 / ITU-RM.493-14 / ITU-RM.825-3 / IMO Resolution MSC.74(69) / IEC60945 Ed 4.0 / IEC61108-1 / IEC61108-2, and the latest international regulations

• Isolated power supply voltage 11~36V (built in reverse prevention circuit)

• Two additional RS-232 outputs (built in protection circuit)

• Easy setting up at boot time and convenient keyboard.

• Various target ship alignment method (MMSI, distance, bearing descending/ascending order)

• Searching target ship with Ship name, MMSI

• Korean, Chinese, English, Russian menu option

• Day/Night time display mode

• Auto speed detection and checking of external sensor input

• Upgraded Self-diagnosis function / Internal fault diagnosis system for continuous diagnosis

• Easy software upgrade by using SD card(1G to 16G available)

============================================================

Specifications

POWER

• AIS Unit DC IN : 12V(RX:0.9A/TX:5.2A)/24V(RX:0.5A/TX:2.5A)

• AC/DC Unit (SP-70AD) AC IN : 100 to 230VAC, 47~63 Hz DC OUT : DC24V / 6.3A

TRANSCEIVER

• TX/RX Frequency Range : 156.025 to 162.025 MHz

• Default Frequencies : AIS1 (CH 87B) = 161.975 MHz(F1D); AIS2 (CH 88B) = 162.025 MHz(F1D); DSC (CH70 fixed) = 156.52 M5Hz(G2B)

• Power Output : 12.5W (41dBm±1.5dB / 8.91W~17.78W) or 1.0W (30dBm±1.5dB / 0.7W~1.41W)

• Antenna Impedance : 50 ohms (SO-239)

• Sensitivity (AIS RX) : PER < 20% at -107 dBm

• Sensitivity (DSC RX) : BER <10-4 at -107 dBm

DISPLAY

• LCD : 7 inch TFT color, 800 x 480

INPUT / OUTPUT COMMUNICATION

• SENS1/2/3 : IEC61162-1/2 (input only)

• LONG/AUX/PILOT : IEC61162-1/2 (input & output)

GNSS ANTENNA / RECEIVER SPECIFICATION

• Antenna : GNSS-70 (PATCH ANTENNA / TNC / RG-58U / Gain:17dB)

• Receiver : 72-channel u-blox engine / GPS / QZSS / GLonASS / BeiDou / Galileo / WAAS, EGNOS, MSAS

VHF SPECIFICATION

• Model Name : SAN-150 (2dBi)

• Connector Type : Standard female UHF

• Frequency Range : 156-162 MHz, VSWR < 1.5:1

• Impedance : 50 ohm

• Output Range: 100W

OPERATION ENVIRonMENT

• Standards : IEC 60945 (EMC, Dry heat, humidity, low temperature, vibration , corrosion, compass safety distance etc.)

• Antenna Operation : -30°C to +70°C

• Main Body Operation : -15°C to +55°C

• Storing Temperature : -25°C to +75°C

===========================================================
