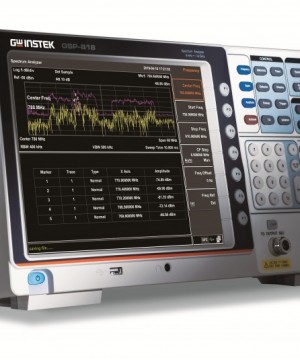

GW Instek GSP-818 Spectrum Analyzer

GW Instek GSP-818 Spectrum Analyzer

============================================================

Features

·         Frequency Range: 9kHz to 1.8GHz

·         RBW: 10Hz to 3MHz, 10Hz to 500kHz in 1-10 steps

·         Sensitivity: -148dBm/Hz Typical @PreAmp On

·         Built-in AM/FM Demodulation

·         Bandwidth Zoom function

·         Measurement Function: ACPR/OCBW/CHPW, NdB Bandwidth, Freq. Counter, Noise Marker, Limit Line

·         Built-in 20dB Preamplifier Standard

·         Interface: Lan, USB

·         Screen: 10.4" SVGA Output (800*600)

============================================================

Specifications

FREQUENCY

*Frequency Span Range : 9 kHz to 1.8 GHz

*Internal Frequency Reference : 10.000000 MHz

*Bandwidth : 10Hz to 500kHz (1-10 steps by sequence), 1MHz, 3MHz (Option) 200 Hz, 9 kHz, 120 kHz, 1 MHz for EMI(-6dB)

AMPLITUDE

*Amplitude and Level : DANL to +10 dBm, 100 kHz to 1 MHz, Preamp Off; DANL to +20 dBm, 1 MHz to1.8 GHz, Preamp Off

*Display Average Noise Level : +30dBm, average continuous power

DEMODULATION

*Audio Demodulation : 100 kHz to 1.8 GHz

*AM Measurement : 10MHz to 1.8GHz

*FM Measurement : 10 MHz to 1.8 GHz

FREQUENCY COUNTER

*Counter Resolution : 1Hz, 10Hz, 100Hz, 1kHz

INPUT AND OUTPUTS

*RF Input : 50Ω Typical, N Type Female

*Tracking Generator Output : 50Ω Typical, N Type Female

*Reference Input : BNC Female, 0 dBm to +10 dBm

*USB : A Plug, USB 2.0 (Host End), B Plug, 2.0 Version

*VGA : 15-pins, D-SUB (female)

GENERAL

*Display : 10.4 inches, TFT LCD, 800*600 (SVGA), 65536 colors

*Internal Memory  : 256M Bytes

*Temperature : 0°C to 40°C

*Dimension & Weight : 421(W) × 221 (H) × 115mm(D)/Approx. 5.0 kg(without package)

ACCESSORIES : Power cord Calibration Certificate, CD (including quick start guide, user manual, programming manual, PC software)

===========================================================
