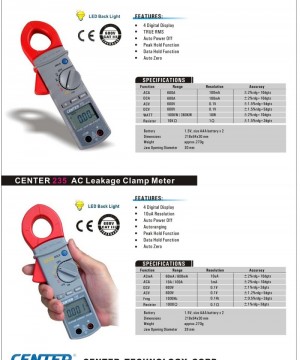

CENTER 235 AC Leakage Clamp Meter

CENTER 235 AC Leakage Clamp Meter

============================================================

Features

•        4 Digital Display

•        10uA Resolution

•        Autoranging

•        Auto Power Off

•        Max Hold Function

•        Data Hold Function

•        Auto Zero

============================================================

Specifications

AC mA

*Range : 60mA; 600mA

*Resolution : 10µA; 100µA

*Accuracy : ±1.2%rdg ±5dgts (50Hz~60Hz); ±2.5%rdg ±5dgts (50Hz~1KHz)

ACA

*Range : 10A; 80A; 80A~100A

*Resolution : 1mA; 10mA; 10mA

*Accuracy : ±1.2%rdg ±5dgts (50Hz~60Hz); ±2.5%rdg ±5dgts (50Hz~1KHz); ±5%rdg ±5dgts (50Hz~60Hz)

DCV

*Range : 600V

*Resolution : 0.1V

*Accuracy : ±1%rdg ±2dgts

ACV

*Range : 600V

*Resolution : 0.1V

*Accuracy : ±1%rdg ±2dgts

Frequency (Hz)

*Range : (A-Hz)  0Hz~1000Hz / 100Hz~1KHz; (V-Hz)  0Hz~1000Hz / 100Hz~1KHz

*Resolution : 0.1Hz / 1Hz; 0.1Hz / 1Hz

*Accuracy : ±0.5%rdg ±2dgts

Resistor

*Range : 1KΩ

*Resolution : 0.1Ω

*Accuracy : ±1%rdg ±3dgts

Battery : 1.5V size AAA battery x 2

Dimensions : 218 x 64 x 30 mm

Weight : 280g

Maximum Jaw Opening : ø 28 mm

===========================================================
