GW Instek GDM-8245 Dual Display Digital Multimeter

GW Instek GDM-8245 Dual Display Digital Multimeter

============================================================

Features

·         50000 Counts Display

·         Multi-Function : ACV, DCV, ACA, DCA, R, C, Hz, Continuity Beeper, Diode, Test, Max/Min, REL, Hold, dBm

·         Dual Display Indicate ACV and Hz,or DCV(ACV) and dBm

·         Manual or Auto Ranging

·         0.03% DCV Accuracy

·         ACV Measuring Frequency Up to 50kHz

·         AC True RMS or AC + DC True RMS

============================================================

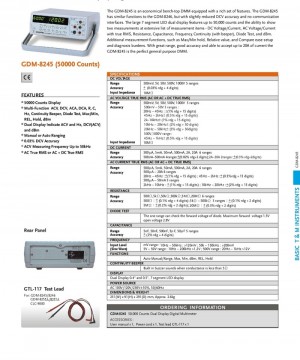

Specifications

DC VOLTAGE

Range : 500mV, 5V, 50V, 500V, 1000V 5 ranges

AC VOLTAGE True RMS (AC or AC+DC True RMS)

Range : 500mV, 5V, 50V, 500V, 1000V 5 ranges

Input Impedance : 10MΩ

AC CURRENT True RMS (AC or AC+DC True RMS)

Range : 500μA, 5mA, 50mA, 500mA, 2A, 20A 6 ranges

RESISTANCE

Range : 500Ω, 5kΩ, 50kΩ, 500kΩ, 5MΩ, 20MΩ 6 ranges

DIODE TEST

Maximum forward voltage 1.5V, open voltage 2.8V

CAPACITANCE

Range : 5nF, 50nF, 500nF, 5μF, 50μF 5 ranges

FREQUENCY

Input Level (Sine Wave) mV range : 10Hz ~ 50kHz >120mV, 50kHz ~ 150kHz >200mV; 5V ~ 50V range : 10Hz ~ 200kHz >1.2V; 500V range : 20Hz ~ 1kHz >12V

FUNCTIONS : Auto Range, Manual Range, Max, Min, dBm, Rel, Hold

ConTINUITY BEEP : Built in buzzer sound when conductance is less than 5Ω

DISPLAY : Dual display 0.4", 0.5" 7 segment LED

POWER SOURCE : AC 100V/120V/230V +10%, 50/60Hz; Power consumption: 8VA max.

DIMENSIONS & WEIGHT : 251(W) × 91(H) × 291(D) mm; Approx. 2.6kg

ACCESSORIES : User manual x 1, Power cord x 1, Test lead GTL-117 x 1

===========================================================
