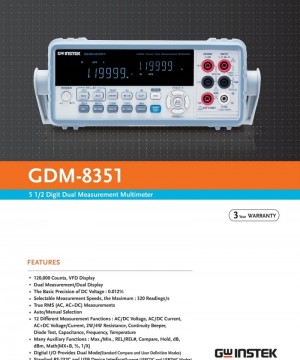

GW Instek GDM-8351 5 ½ Digit Dual Measurement Multimeter

GW Instek GDM-8351 5 ½ Digit Dual Measurement Multimeter

============================================================

Features

·         120,000 counts, VFD display

·         Dual measurement/Dual display

·         The basic precision of DC voltage: 0.012%

·         Selectable measurement speeds, the maximum: 320 Readings/s

·         True RMS (AC，AC+DC) measurements

·         Auto/manual selection

·         12 different measurement functions: AC/DC voltage, AC/DC current, AC+DC voltage/current, 2W/4W resistance, continuity beeper, diode test, capacitance, frequency, temperature

·         Many auxiliary functions: Max./Min., REL/REL#, Compare, Hold, dB, dBm, Math (MX+B, %, 1/X)

·         Digital I/O provides dual mode (standard Compare and User definition modes)

·         Standard RS-232C and USB device interface (support USBCDC and USBTMC modes)

============================================================

Specifications

DC Voltage :

*Range : 100mV – 1000V

*Resolution : 1µV

Resolution :

*Range : 100Ω - 100MΩ

*Resolution : 1mΩ

DC Current :

*Range : 10mA – 10A

*Resolution : 100mA

Continuity :

*Range : 100Ω

*Resolution : 100µV

Diode Test :

*Range : 6V

*Resolution : 100µV

Capacitance :

*Range : 10nF - 100µF

*Resolution :  0.01nF

True RMS AC (or AC+DC – AC Coupled) Voltage :

*Range : 100mV – 750V

*Resolution : 1µV

True RMS AC (or AC+DC – AC Coupled) Current :

*Range : 10mA – 10A

*Resolution : 100nA

Frequency :

*Voltage : 10Hz – 1MHz

*Current : 20Hz – 10kHz

Temperature (Thermocouple) :

*Range : -200°C to 300°C

*Resolution : 0.01°C

Display : VFD, Two Colors Display

Interface : RS-232C, USB device (USBCDC & USBTMC)

Power Source : AC 100 V / 120 V / 220 V / 240 V ±10%, 50-60Hz; Power Consumption Max. 15VA

Dimensions & Weight : 265(W) x 107(H) x 302(D) mm, approx. 2.9kg

Accessories : Safety Instruction Sheet x1, Power cord x1, Test lead GTL-207A x1,  CD x 1 (including complete user manual, driver and software)

===========================================================
