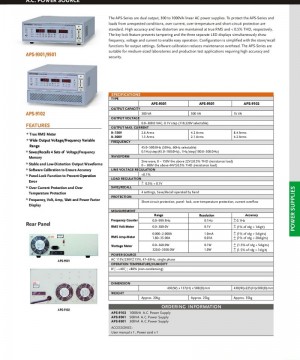

GW Instek APS-9301 A.C. Power Source

GW Instek APS-9301 A.C. Power Source

============================================================

Features

·         True RMS Meter

·         Wide Output Voltage / Frequency Variable Range

·         Save/Recall 4 Sets of Voltage/Frequency Memory

·         Over Current Protection and Over Temperature Protection

·         Stable and Low-Distortion Output Waveforms

·         Software Calibration to Ensure Accuracy

·         Panel-Lock Function to Prevent Operation Error

·         Frequency,Volt,Amp,Watt and Power Factor Display

============================================================

Specifications

Output Capacity : 300VA

Output Voltage : 0.0 - 300.0VAC, 0.1V step (110,220V selectable)

Output Max. Current :

*0 – 150V : 2.6A RMS

*0 – 300V : 1.3A RMS

Frequency : 45.0 - 500.0Hz (50Hz, 60Hz selectable); 0.1Hz/step(45.0 - 100.0Hz), 1Hz/step(100.0 - 500.0Hz)

Waveform : Sine wave, 0 - 150V the above 22V 0.5% THD (resistance load); 0 - 300V the above 44V 0.5% THD (resistance load)

Line Voltage Regulation : <0.1%

Load Regulation : ±0.5% +0.1V

Save/Recall : 4 settings, Save/Recall operated by hand

Protection : Short-circuit protection, panel- lock, over temperature protection, current overflow

Measurement :

*Frequency Counter :

- Range : 0.0 – 999.9Hz

- Resolution : 0.1Hz

- Accuracy : ±0.1Hz

*RMS Volt-Meter :

- Range : 0.0 – 380.0V

- Resolution : 0.1HV

- Accuracy : ±0(1% of rdg + 5digits)

*RMS Amp-Meter :

- Range : 0.000 – 2.000A; 1.80 – 35.00A

- Resolution : 1.0mA; 0.01A

- Accuracy : ±(1% of rdg + 5digits); ±(1% of rdg +20digits)

*Wattage Meter :

- Range : 0.0 – 360.0W; 320.0 – 3500.0W

- Resolution : 0.1W; 1.0W

- Accuracy : ±(1.5% of rdg + 5digits); ±(1.5% of rdg + 1digits)

Power Source : AC 115V/230V ±15%, 47 – 63Hz, single phase

Operating Temperature/Humidity : 0°C to +40°C; <80% (non-condensing)

Dimension : 430(W) x 137(H) x 500(D)mm

Weight : Approx. 20kg

Accessories : User manual x 1, Power cord x 1

===========================================================
